Beskrivelse

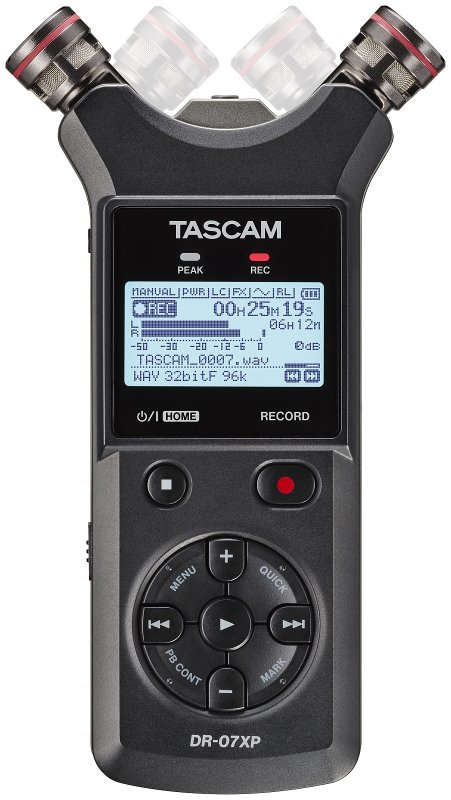

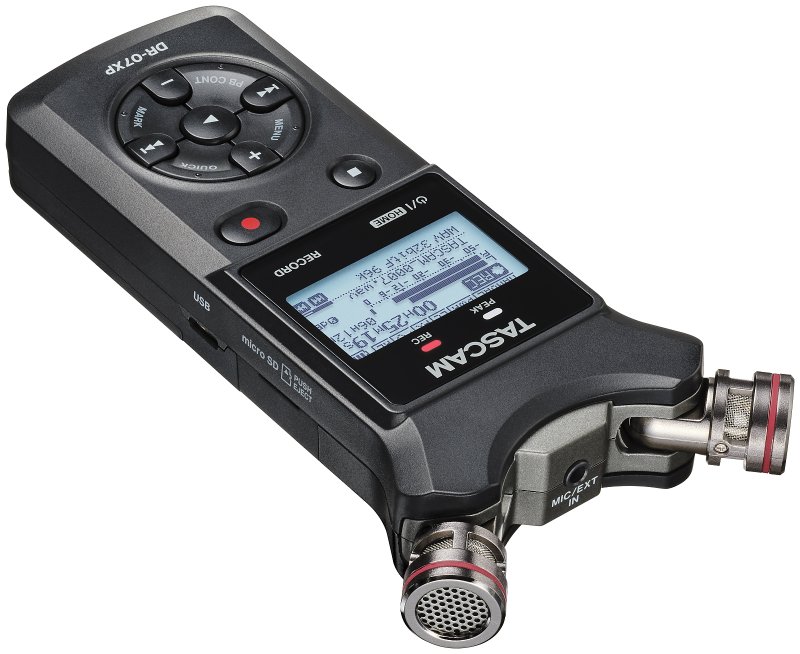

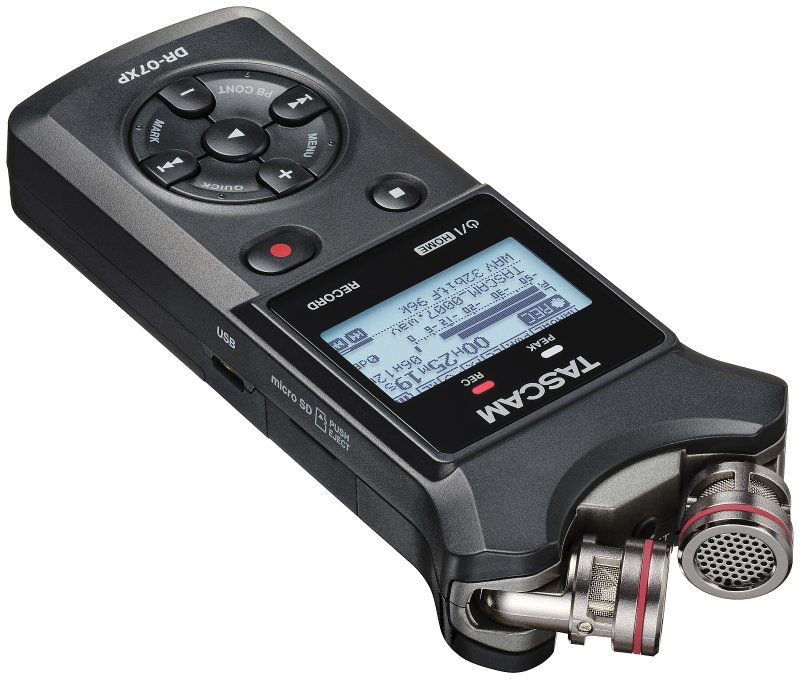

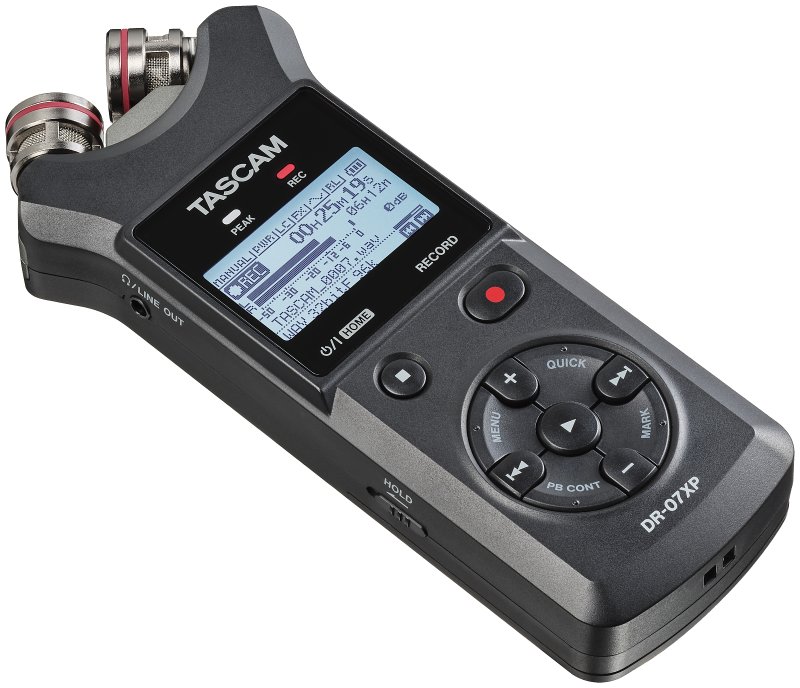

Tascam DR-07XP håndholdt stereo optager
Optag professionelle lydoptagelser fra din hånd
Den bærbare håndholdte optager DR-07XP gør det nemt at optage optagelser i professionel kvalitet til musik, lyd-til-video, møder, diktering og mere. Med 32-bit float-optagelsestilstand behøver du aldrig at bekymre dig om indstilling af lydniveauer, og justerbare stereokondensatormikrofoner giver dig fuld kontrol over din lyd.
Med nem énhåndsbetjening gør DR-07XP det nemt at starte optagelsen med minimal opsætningstid.
Optag Pro-Level-optagelser hver gang
Med sin 32-bit float optagetilstand sikrer DR-07XP, at dine lydoptagelser altid er klare, tydelige og fri for forvrængning, der kan ødelægge din optagelse - og du behøver aldrig at bekymre dig om at indstille inputniveauer.
Justerbare stereokondensatormikrofoner
DR-07XP har stereokondensatormikrofoner med justerbare A-B eller X-Y konfigurationer, så du kan fange utroligt levende stereooptagelser i enhver indstilling.
Enkelhed i din håndflade
Med DR-07XP hører kompleksiteten af ??lydoptagelser fortiden til. Få nemt adgang til alle funktioner fra din håndflade.
Derudover betyder den baggrundsbelyste LCD-skærm ingen skelen, bare klar og kortfattet navigation når som helst på dagen, i ethvert miljø.
Dit bærbare optagestudie
DR-07XP er ikke kun en kraftfuld bærbar optager - det er også et 2-in/2-out USB-C-lydinterface, du kan bruge til at optage hvor som helst, direkte til lydoptagelsessoftware på din Mac eller pc
Ideel til musikere
DR-07XP er en fantastisk bærbar optagelsesløsning til musikere med dens højkvalitetsmikrofoner, 32-bit float-optagelse, indbygget tuner, rumklang, overdubbing og mere.
On location
Med sin kompakte størrelse kan DR-07XP rejse hvor som helst for exceptionel feltoptagelse. Vælg mellem tre forskellige low cut filter muligheder for at slippe af med uønskede lyde.
Som en ledsager til video kan DR-07XP nemt fastgøres til stativer, og den automatiske toneudgang til kameraer gør efterproduktion til en enkel opgave.
Optag hvad som helst, hvor som helst
Fra dialog til vlogs, uanset om du er i en gyde eller en optagekabine, optager DR-07XP klar, sprød lyd med lethed. Ud over de indbyggede mikrofoner kan du bruge stereo mini-jackstikket til at tilføje mikrofoner med plug-in strøm eller eksterne linjeindgange for at optage lyd fra enhver kilde i mono eller stereo.
Tilslut enheden til en computer via USB-C til brug som USB-mikrofon.
wo-channel portable handheld audio recorder with microSDXC card storage
32-bit float resolution ensures low-noise, distortion-free recordings
Built-in condenser microphones handle loud environments and sources (up to 125 dB SPL)
2-in/2-out USB-C audio interface for recording directly to your computer
More than 17 hours operation with two AA alkaline batteries
Supported audio formats:
Linear PCM (WAV/BWF) at 32-bit float, 24 bit, 16 bit (sampling rates 96 kHz, 48 kHz, 44.1 kHz)
Compressed (MP3): 32-320 kbit/s at 44.1/48 kHz (VBR files can be played but not recorded)
Recording
Cardioid stereo condenser microphones, easy to set up in either AB or XY configuration
XY configuration allows mono compatible recordings and high sound localization acuity (lively interviews or field recordings with ambience)
Switchable filter to minimize unwanted low-frequency noise (40 Hz, 80 Hz, 120 Hz, 220 Hz)
Manual recording level setting for music and field recording
Three options of automatic level control during recording: Peak Reduction, Auto Level, Limiter
Auto-recording function to automatically start recording based on input level
Marks can be added automatically when using the automatic recording function
Overwrite function for punch-in recording with one level of Undo
Overdub function for non-destructive overdubbing
Dictation mode designed for human voice recording and transcription
Pre-recording buffer (2 seconds) allows a recording to start before the record key is pressed
Self-timer allows a recording to start 5 or 10 seconds after pressing the RECORD button
A new file can be created manually during recording or automatically when a certain file size is reached
Set marks to quickly locate certain audio positions (up to 99 per file)
Automatic tone generator convenient when editing with video on other equipment
Stereo mic/line input with plug-in power to connect an external source or microphone
File name format can be set to use a predefined word or the date
Playback
Automatic level align prevents uneven playback levels
Variable speed audition to change the playback tempo without affecting the key (50-200 %)
Repeat/loop function (repeat one track, all tracks or a marked section, convenient for practicing music and studying languages
Playlist feature to play files in a certain order
Resume function retains the last stop position and starts playback from that position when power is turned back on
Jump back function to instantly review playback (1-10, 20, 30 seconds)
Equalizer for tone control during playback
MP3 ID3 tag display (up to version 2.4)
Built-in loudspeaker
Headphones/Line output
Other features
Built-in reverb effect (6 presets, can be applied to input or output signal)
Chromatic tuner function to tune your instrument
QUICK menu button for easy access to various functions
File divide function to cut unwanted noise or to extract parts from long recordings
Folder management to organize your files
Hold function to avoid inadvertent operation
Menu language can be selected between English, German, French, Italian, Spanish, Portuguese, Korean, Japanese, Chinese, Russian
Clear, backlit LC display
USB 2.0 port for file transfer to/from computer (USB-C type)
Power supply by 2 AA size Alkaline or NiMH batteries, USB bus power or optional AC adapter (Tascam PS-P520U)
Stand adapter (¼ inch) on bottom side to attach the unit to a tripod or microphone stand
General
Recording media
microSD/microSDHC/microSDXC card (up to 512 GB)
Recording/playback format
WAV
Sampling frequency: 44.1/48/96 kHz
Quantization bit depth: 16-bit / 24-bit / 32-bit float
MP3
Sampling frequency: 44.1/48 kHz
Bit rate: 32/64/96/128/192/256/320 kbit/s
Number of channels
Input channels: 2 (stereo)
Recording tracks: 2 (stereo)
Analogue audio inputs and outputs
Microphone/External input (can provide plug-in power)
3.5-mm stereo mini jack
Input impedance
>18 kOhm (plug-in power off)
>2 kOhm (plug-in power on)
Nominal input level
-20 dBV
Maximum input level
-4 dBV
Headpones/Line output
3.5-mm stereo mini jack
Output impedance
12 Ohm
Nominal output level
-14 dBV (10 kOhm load)
Maximum output level
+2 dBV (10 kOhm load)
Maximum output power
20 mW + 20 mW (32 Ohm load)
Working impedance
16-250 Ohm
Built-in loudspeaker
0.3 W (mono)
Control inputs and outputs
USB
Type-C connector
Format
USB 2.0 HIGH SPEED mass storage class
USB 1.1 FULL SPEED audio class
USB Audio
Sampling frequency
44.1/48 kHz
Quantization bit depth
24 bit
Number of audio inputs
2 channels
Number of audio outputs
2 channels
Audio performance
Frequency response
20 Hz - 20 kHz, +0/-1 dB
(MIC/EXT IN to LINE OUT, 44.1 kHz, JEITA)
20 Hz - 22 kHz, +0/-1 dB
(MIC/EXT IN to LINE OUT, 48 kHz, JEITA)
20 Hz - 40 kHz, +0/-1.5 dB
(MIC/EXT IN to LINE OUT, 96 kHz, JEITA)
Total harmonic distortion ratio (THD+N)
<0.01 %
(MIC/EXT IN to LINE OUT, 44.1/48/96 kHz, JEITA)
Note: JEITA indicates conformance to JEITA CP-2150
Power supply and other specifications
Power supply
2 AA batteries (alkaline or NiMH, sold separately)
USB bus power from a computer
Dedicated AC adapter (TASCAM PS-P520U, sold separately, DC 5 V, 2 A)
Power consumption
1.7 W / 5 V, 0.5 A (maximum)
Dimensions (W × H × D)
68 mm × 160 mm × 27 mm (microphones in XY configuration)
90 mm × 160 mm × 27 mm (microphones pair in AB configuration)
Weight
184/136 g (with/without batteries)
Permissible operating temperature range
0-40 °C
