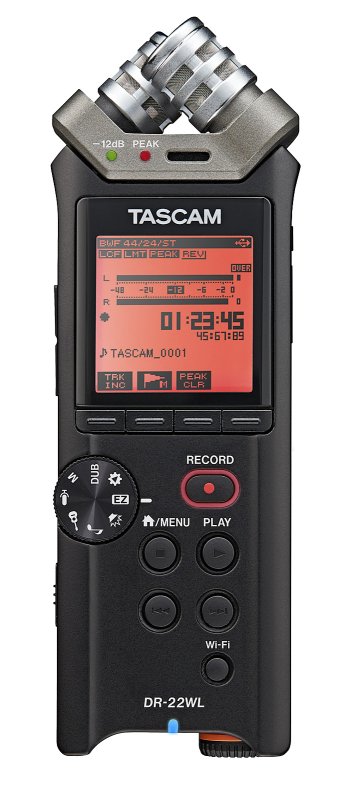

Tascam DR-22WL håndholdt stereo optager
DR-22WL er en strømlinet model med et brugervenligt interface. Den er ideel til akustiske instrumenter. Enheden kan også bruges til andre applikationer end musik som f.eks. lydoptagelse til video med et digitalt SLR-kamera. Den tilbyder også avancerede Wi-Fi-funktioner som gør den trådløs, i stand til streaming-playback og filoverførsel.
Recording media: microSD card (64 MB − 2 GB), microSDHC card (4−32 GB), microSDXC card (64−128 GB)
Recording/playback formats: BWF: 44.1k/48k/96kHz, 16/24 bit, WAV: 44.1k/48k/96kHz, 16/24 bit, MP3: 44.1k/48 kHz, 32/64/96/128/192/256/320 Kbit/s
Number of channels: 2 channels (stereo)
MIC/EXT IN jack (can provide plug-in power): 3.5-mm stereo mini jack
Input impedance: 25 kΩ
Reference input level: -20 dBV
Maximum input level: -4 dBV
Phones/LINE OUT jack: 3.5-mm stereo mini jack
Output impedance: 12 Ω
Reference output level: -14 dBV (at 10 kΩ load)
Maximum output level: +2 dBV (at 10 kΩ load)
Maximum output: 20 mW + 20 mW (at 32 Ω load)
Built-in speaker: 0.3 W (mono)
USB port: Mini-B type
Format: USB 2.0 HIGH SPEED mass storage class
Frequency response (EXT IN to LINE OUT): 20 Hz – 20 kHz +1/–3 dB (44.1 kHz, JEITA), 20 Hz – 22 kHz +1/–3 dB (48 kHz, JEITA), 20 Hz – 40kHz +1/-3 dB (96 kHz, JEITA)
Distortion (EXT IN to LINE OUT): 0.05% or less (44.1k/48k/96kHz, JEITA)
S/N ratio: 92dB or above (44.1k/48k/96kHz, JEITA)
Note: Measurements based on JEITA CP-2150
Windows: Pentium 300 MHz or more, 128MB or more memory, USB port (USB 2.0 is recommended)
Mac: Power PC, iMac, G3, or G4 with 266 MHz or more, 64 MB or more memory, USB port (USB 2.0 is recommended)
Recommended USB host controller: Intel chip set
Supported operating systems: Windows XP, Windows Vista, Windows 7, Windows 8 (including 8.1), Mac OS X 10.2 or later
Wi-Fi standard: IEEE 802.11b/g/n (2.4GHz only)
Wireless communication mode: Simple access point (Limited AP)
Wi-Fi security: WPA2-PSK (WPS2.0 compatible)
Power supply: 2 AA batteries (alkaline or NiMH), USB bus power from a computer, Dedicated AC adapter (TASCAM PS-P515U sold separately)
Power consumption: 1.7 W (maximum)
Dimensions (W x H x D): 52 x 155 x 37 mm
Weight: 170 g (with batteries), 123 g (without batteries)
Operating temperature: 0–40 °C
