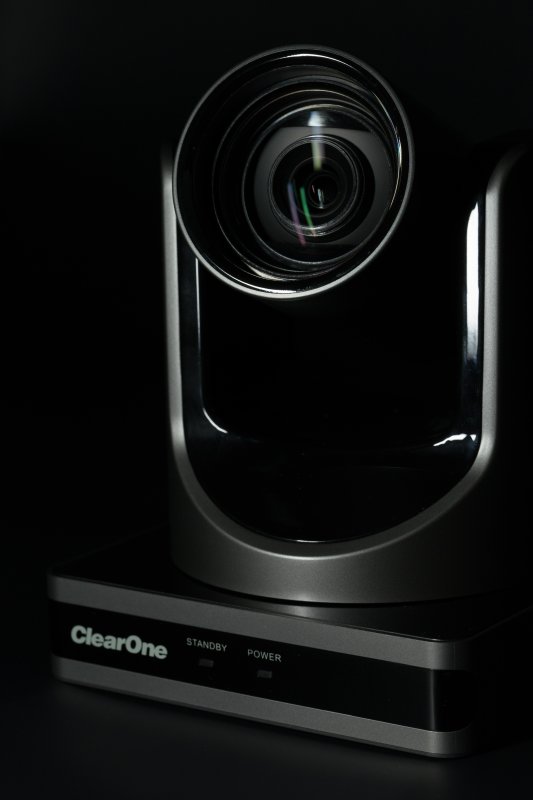

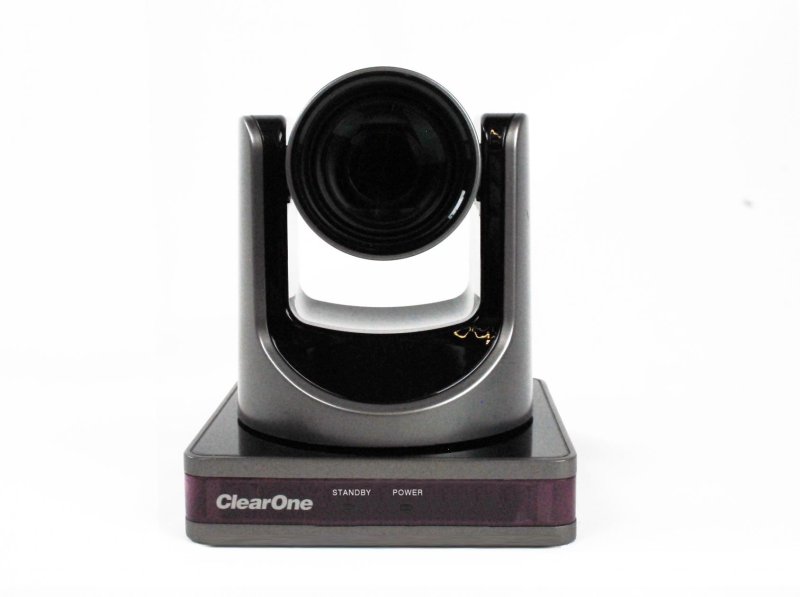

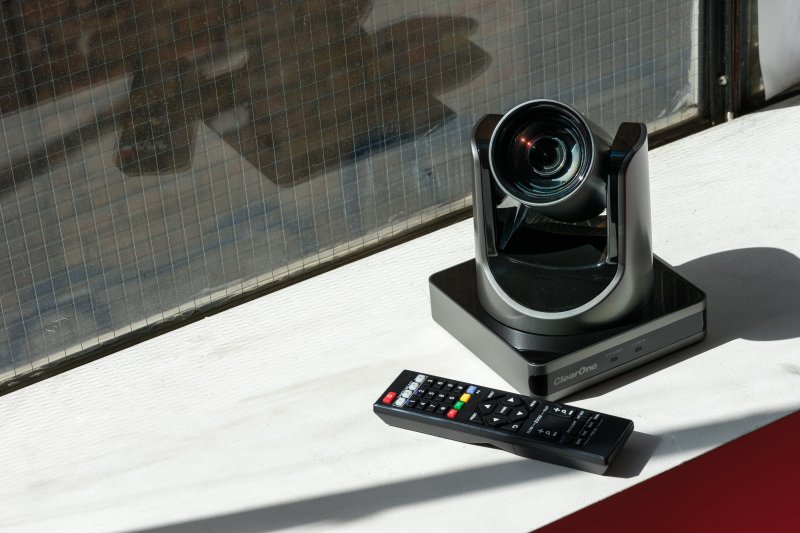

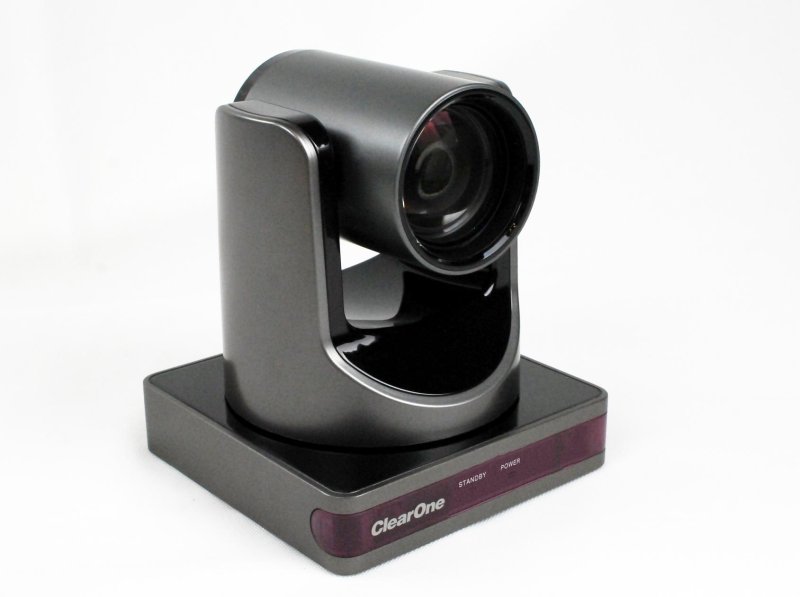

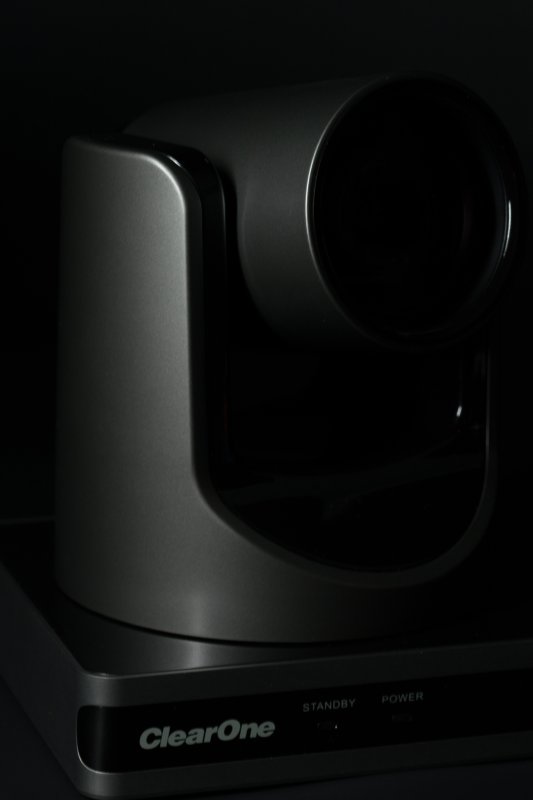

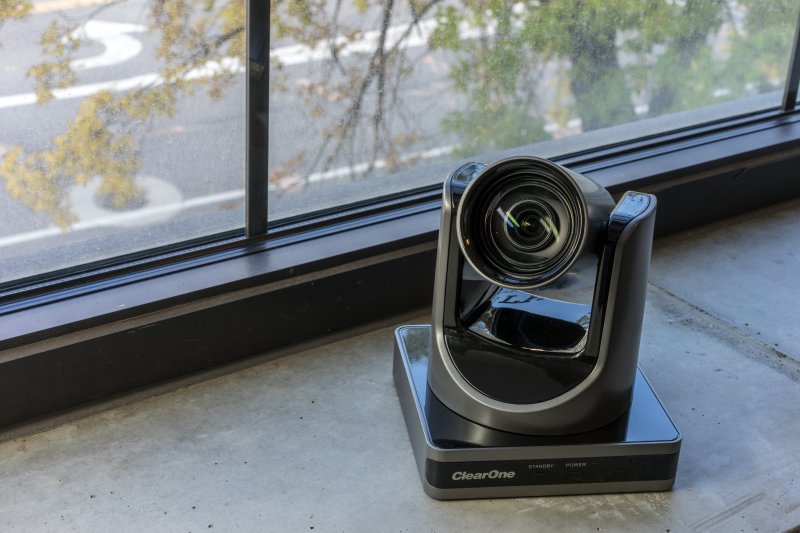

UNITE® 150 PTZ Camera
Professionelt HD USB PTZ-kamera til konferencelokaler, webkonference, UC-applikationer og mere.
Video i virksomhedsklasse transformerer ethvert mødelokale ind i en professionel video samarbejdsrum.
>Full HD 1080p video, 12x optical zoom, and wide-angle capability to capture all participants in the room with advanced noise reduction.
>Compatibility with USB 3.0 and 2.0 makes it perfect for PC-based video and web conferencing applications.
>Compatible with popular applications such as COLLABORATE® Space, Microsoft Teams,Cisco Jabber, WebEx, GoToMeeting, Google Hangouts, and more

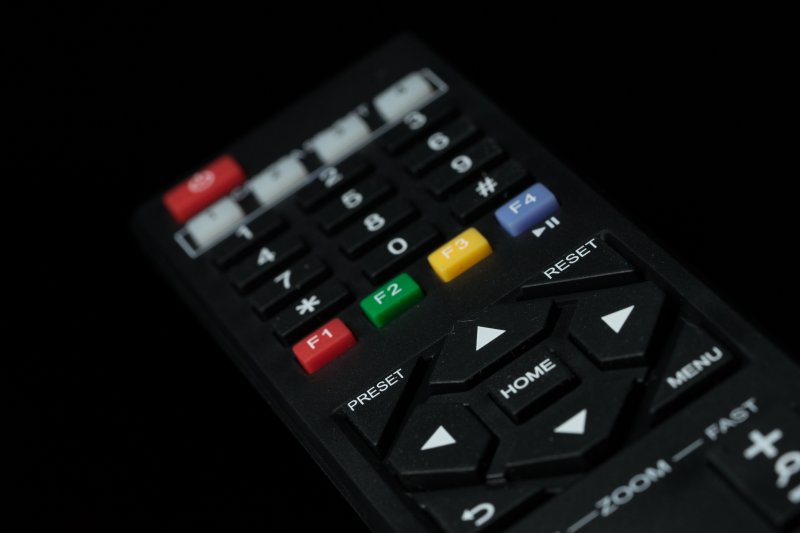

>Control the camera’s functions via IR remote control, RS-232, or USB control.
CAMERA
*Video System:
*HD: 1080p30
*1080p25
*720p30
*720p25
*Sensor: 1/2.7 inch, CMOS
*Effective Pixel: 2.07M
*Scanning Mode: Progressive
*Lens: 12x, f3.5mm-42.3mm, F1.8-F2.8
*Minimal Illumination: 0.5 Lux @ (F1.8, AGC ON)
*Shutter: 1/30s-1/10000s
*White Balance: Auto, Indoor, Outdoor, One Push, Manual
*Backlight Compensation: Supported
*Digital Noise Reduction: 2D & 3D Digital Noise Reduction
*Video S/N: >=55dB
*Horizontal Angle of View: 72.5°-6.9°
*Vertical Angle of View: 44.8°-3.9°
*Horizontal Rotation Range: ±170°
*Vertical Rotation Range: -30°- +90°
*Pan Speed Range: 1.7°-100°/s
*Tilt Speed Range: 1.7°-69.9°/s
*H & V Flip: Supported
*Image Freezing: Supported
*Number of Presets: 255
*Flexible Installation: Standard mount, upside-down mount

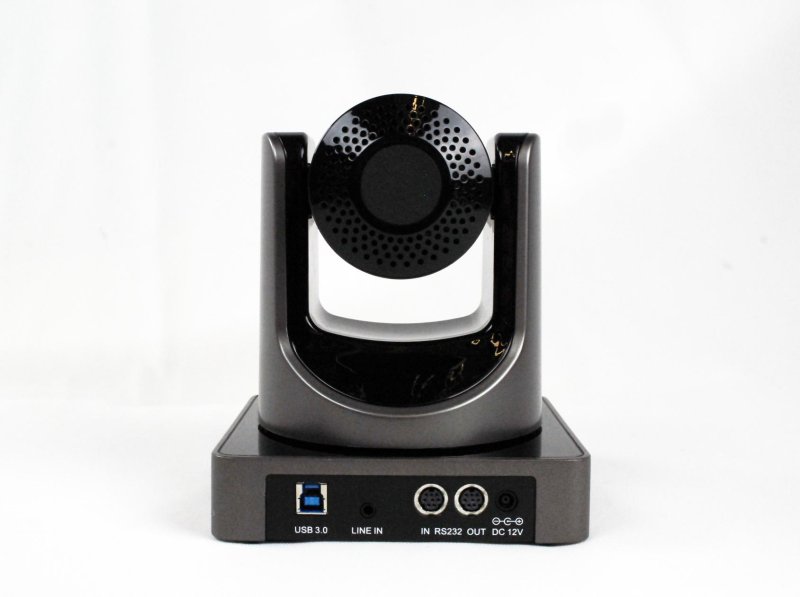

INPUT/OUTPUT INTERFACE
*Audio Interface: 1-ch: 3.5mm Audio Interface, Line In
*USB Interface: 1 x USB3.0: Type B female jack
*Communication:
*1 x RS-232 IN: 8-pin Min DIN, Max Distance: 30m, Protocols: VISCA/Pelco-D/Pelco-P
*1 x RS-232 OUT: 8-pin Min DIN, Max Distance: 30m, Protocols: VISCA network use only
USB FEATURES
* Operating Systems: Windows 7, Windows 8, Windows 8.1, Windows 10, MacOS, Linux
* Color System: YUV 4:2:2
* Video Formats:
* USB3.0: 1080p30
* 1080p25
* 720p30
* 720p25
* USB 2.0: 720P30 maximum
NOTE: Due to limitations with USB 2.0, video quality would be downgraded. USB 2.0 extenders are not recommended.
*USB Video Communication: UVC 1.0 - UVC 1.5
*Audio on USB: Supported
*UVC PTZ: Supported
GENERIC SPECIFICATIONS
*Power Jack: JEITA type (DC In 12V)
*Input Voltage: DC 12V
*Current Consumption: 1.0A (max)
*Power Consumption: 12w (max)
*Operating Temperature: 14°F-104°F (-10°C-40°C)
*Storage Temperature: -40°F-140°F (-40°C-60°C)
*MTBF: >30000h
*Dimensions: 5.67" x 5.67" x 6.61" (144mm x 144mm x 168mm)
*Weight: 2.0lb (0.91Kg)
OPTIONAL ACCESSORIES
*910-2100-104: Wall Mount for UNITE 150 Camera
*910-2100-204: Ceiling Mount for UNITE 150 Camera
*910-2100-002: USB 3.0 cable
PART NUMBER:
*910-2100-004
