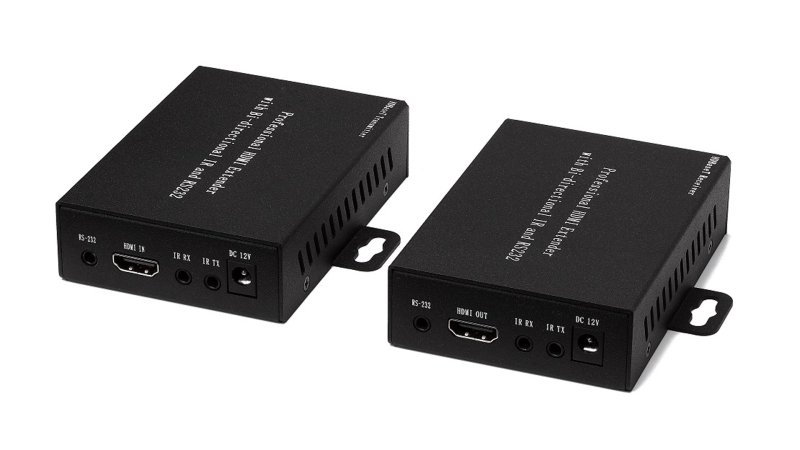

The VIS-HE10 HDMI Extender over cat5e/cat6 is to extend the HDMI signal over long distances to a compatible display. It is designed to convert HDMI signal to standard HDBaseT signal and transmit by Cat5e/6 cable. It also transmit Bi-directional Infrared signal together with the HDMI signal, capable of controlling the source in the device side out to 100 meters, or from source to device, RS232 pass through makes it more convenient to be controlled.
●Allow HDMI signal/IR transmit up to 100 meter over Cat5e/6 cable ●HDMI signal from 1080P to 4Kx2K, 3D video format support, HDCP compliance ●IR signal/RS232 pass through together with HDMI over Cat5e/6 cable bi-directionally for remote control ●Ultra Light&thin case design for easy installing
HDMI video interface Protocol supportHDMI1.4, HDCP1.3，EDID1.4 Pixel bandwidth 330MHz Interface bandwidth 10.2Gbps Maximum resolutions 1900x1200@60Hz，3840X2160@30Hz HDTV: 1920x1080P@60Hz BD:4Kx2K@30Hz Signal type HDMI 1.4 / T.M.D.S.
IN/OUT interface HDMI type A, female; HDBaseT Signal amplitude T.M.D.S. +/- 0.4Vpp Min/Max Voltage T.M.D.S. 2.9V/3.3V Input impedance 100Ω
Dimensions 135mmX75mmX15mm
Control interface Serial RS232 (3PIN 3.5mm ) Baud 110-115200bps IR control IR (3.5MM) IR frequency 38K
ETHERNET RJ45 Transmission Distance Up to 100m by CAT5e/6 Power supply 18V DC Maximum dissipation 18W
