Neutrik NC4FXX-BAG 4P XLR kabelstik hun, Sort

Beskrivelse

Specifikationer

Beskrivelse

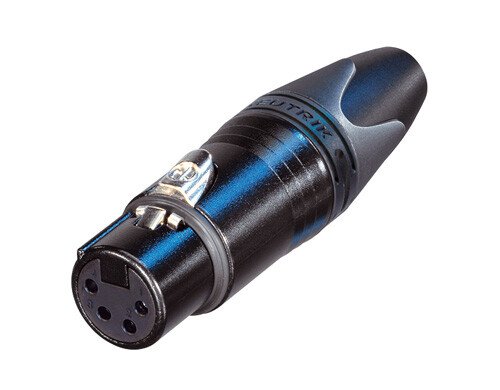

Neutrik NC4FXX

4 polet hunkabelstik med sort metalhus og sølvkontakter.

Den næste generation af den verdensomspændende accepterede standard for XLR-kabelstik. Efterfølgeren til X-serien byder på flere nye funktioner, som gør den mere pålidelig, lettere at samle og forbedrer kontaktintegriteten samt kabeltrækaflastning.

Product
Title NC4FXX-BAG
Connection Type XLR
Female

Electrical
Capacitance between contacts ? 7 pF
Contact resistance ? 3 m?
Dielectric strength 1,5 kVdc
Insulation resistance > 10 G? (initial)
Rated current per contact 10 A
Rated voltage < 50 V

Mechanical
Cable O.D. 3.5 - 8.0 mm
Insertion force ? 20 N
Withdrawal force ? 20 N
Lifetime > 1000 mating cycles
Wiresize max. 1.5 mm²
Wiresize max. 16 AWG
Wiring Solder contacts
Locking device Latch lock

Material
Boot Polyurethan
Contact plating 2 µm Ag over 2 µm Ni
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA66)
Locking element Zinc diecast (ZnAl4Cu1)
Shell Zinc diecast (ZnAl4Cu1)
Shell coating Black KTL
Strain relief Polyacetal (POM)

Environmental
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
