Neutrik XLR chassis fatning hun, sort hus & guldkontakter

Beskrivelse

Specifikationer

Beskrivelse

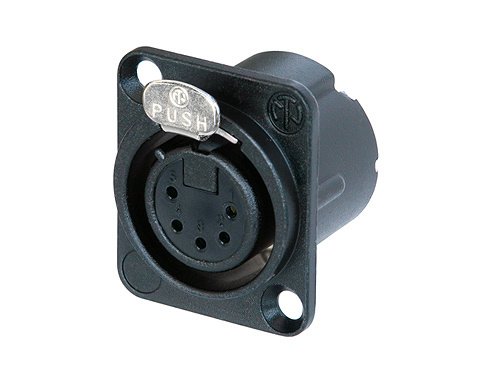

Neutrik NC5FDLX-B XLR chassis fatning hun, sort hus & guldkontakter

5 polet hunstik, loddekopper, sort metalhus, guldkontakter

DLX-serien har et kompakt metalhus med en genial duplex jordkontakt, som tilbyder fremragende RF-beskyttelse og afskærmning.

All metal housing offers best overall RF protection and electromagnetic shieldingDuplex ground contact for excellent contact integrity between chassis and cable connectorFemale contact incorporates a solder barrier to prevent solder running into the contact mating areaLarger solder contacts for easier terminationOptional connection to easily join pin1 to chassis groundD-style housing provides installation compatibility with industry standard D mounting dimensions

Title NC5FD-LX-B
Connection Type XLR
Gender female
Electrical
Capacitance between contacts ? 7 pF
Contact resistance ? 5 m?
Dielectric strength 1,5 kVdc
Insulation resistance > 10 G? (initial)
Rated current per contact 7,5 A
Rated voltage < 50 V
Mechanical
Insertion force ? 20 N
Withdrawal force ? 20 N
Lifetime > 1000 mating cycles
Wiresize max. 1.0 mm²
Wiresize max. 18 AWG
Wiring Solder contacts
Locking device Latch lock
Chassis shape D
Material
Contact plating 2 µm Au over 2 µm Ni
Contacts Brass (CuZn39Pb3)
Insert PA66
Locking element Steel Ck67
Shell Zinc diecast (ZnAl4Cu1)
Shell coating Black KTL
Environmental
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C

Specifikationer

Information

Type:	5 pol
Model:	Chassis stik
Variant:	Hun stik
Farve:	Sort med guld kontak
