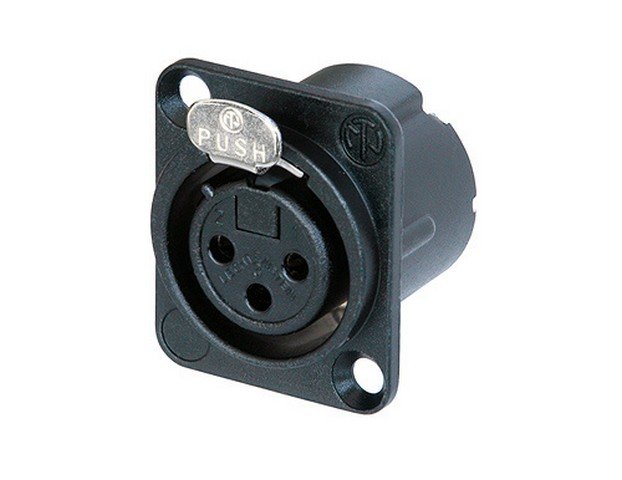

Neutrik XLR chassis fatning hun m/ lås, Sort

Neutrik XLR chassis fatning hun m/ lås, Sort

41,20 DKK (inkl. moms)
NC3FDLX-BAG XLR chassis fatning hun m/ lås & duplex gc sort
Model/Varenr.: NE-NC3FDLX-BAG
Leverandør varenr.: NC3FD-LX-BAG
Lagerstatus:På lager - kan sendes i dag
Favoritliste
Inkl. moms
                0
                                                                                                                                                                                                                                                                                                                                                                                                                        1
                                                                        2
                                                                        3
                                                                        4
                                                                        5

Beskrivelse

Neutrik NC3FDLX-BAG XLR chassis fatning hun m/ lås & duplex gc sort

3-polet hunstik, loddekopper, sort metalhus, sølvkontakter

DLX-serien har et kompakt metalhus med en genial duplex jordkontakt, som tilbyder fremragende RF-beskyttelse og afskærmning. Det er det ideelle match til parring med Neutriks EMC XLR-kabelstik.

All metal housing offers best overall RF protection and electromagnetic shieldingDuplex ground contact for excellent contact integrity between chassis and cable connectorUnique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contactFemale contact incorporates a solder barrier to prevent solder running into the contact mating areaLarger solder contacts for easier terminationOptional connection to easily join pin1 to chassis groundD-style housing provides installation compatibility with industry standard D mounting dimensions


Title NC3FD-LX-BAG
Connection Type XLR
Gender female
Electrical
Capacitance between contacts ? 4 pF
Contact resistance ? 5 m?
Dielectric strength 1,5 kVdc
Insulation resistance > 10 G? (initial)
Rated current per contact 16 A
Rated voltage < 50 V
Mechanical
Insertion force ? 20 N
Withdrawal force ? 20 N
Lifetime > 1000 mating cycles
Wiresize max. 2.5 mm²
Wiresize max. 14 AWG
Wiring Solder contacts
Locking device Latch lock
Chassis shape D
Material
Contact plating 2 µm Ag
Contacts Bronze (CuSn6)
Insert Polyamide (PA66)
Locking element Steel Ck67
Shell Zinc diecast (ZnAl4Cu1)
Shell coating Black KTL
Environmental
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C

Specifikationer

Information

Type: 3 pol
Model: Chassis stik
Variant: Hun stik
Farve: Sort med sølv kontak
