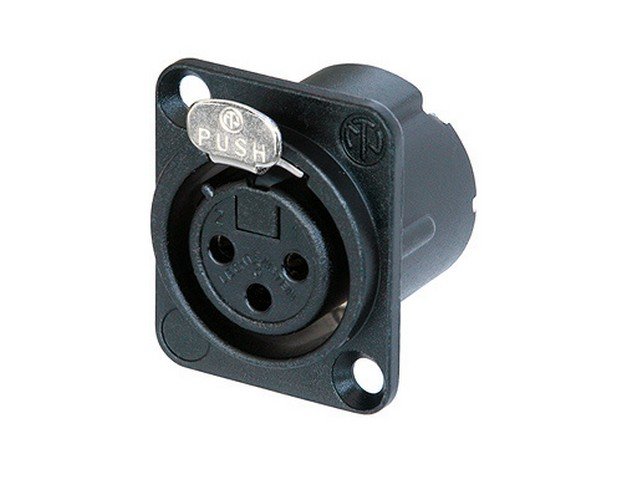

Neutrik XLR chassis fatning hun m/ lås & duplex gc guld

Neutrik XLR chassis fatning hun m/ lås & duplex gc guld

48,25 DKK (inkl. moms)
NC3FDLX-B XLR chassis fatn m/ lås & duplex gc guld
Model/Varenr.: NE-NC3FDLX-B
Leverandør varenr.: NC3FDLX-B
Lagerstatus:På lager - kan sendes i dag
Favoritliste
Inkl. moms
                0
                                                                                                                                                                                                                                                                                                                                                                                                                        1
                                                                        2
                                                                        3
                                                                        4
                                                                        5

Beskrivelse

NC3FDLX-B XLR chassis fatning hun m/ lås & duplex gc guld

Capacitance between contacts: ≤ 4 pF
Contact resistance: ≤ 5 mΩ
Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 16 A
Rated voltage: Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Wiresize: max. 2.5 mm²
Wiresize: max. 14 AWG
Wiring: Solder contacts
Locking device: Latch lock
Chassis shape: D
Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
Contacts: Bronze (CuSn6)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Steel Ck67
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Black chromium
Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C

Specifikationer

Information

Type: 3 pol
Model: Chassis stik
Variant: Hun stik
Farve: Sort med guld kontak
