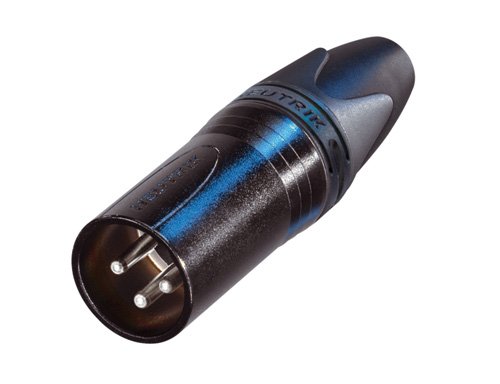

Neutrik NC3MXX-BAG 3P XLR kabelstik han, Sort

NC3MXX-BAG XLR kabel han-stik med sort hus

3-polet hankabelstik med sort metalhus og sølvkontakter.

Den næste generation af den verdensomspændende accepterede standard for XLR-kabelstik. Efterfølgeren til X-serien byder på flere nye funktioner, som gør den mere pålidelig, lettere at samle og forbedrer kontaktintegriteten samt kabeltrækaflastning.

Male connector with improved locking recess without "window", more stringent housing increases durabilityImproved chuck type strain relief provides higher pull-out force and makes assembly easier and fasterBoot with polyurethane gland gives high protection to cable bending stressesColored rings and boots available for coding or identificationSleek and ergonomic design - valuable and handyRugged zinc diecast shell, longlasting and dependableInternal thread on shell is well protected against any damage

Title NC3MXX-BAG
Connection Type XLR
Gender male
Electrical
Capacitance between contacts <= 4 pF
Contact resistance <= 3 mOhm
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GOhm (initial)
Rated current per contact 16 A
Rated voltage < 50 V
Mechanical
Cable O.D. 3.5 - 8.0 mm
Insertion force <= 20 N
Withdrawal force <= 20 N
Lifetime > 1000 mating cycles
Wiresize max. 2.5 mm²
Wiresize max. 14 AWG
Wiring Solder contacts
Locking device Latch lock
Material
Boot Polyurethan
Contact plating 2 µm Ag
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA66)
Locking element Zinc diecast (ZnAl4Cu1)
Shell Zinc diecast (ZnAl4Cu1)
Shell coating Black KTL
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C

Information

Type:	3 pol
Model:	Kabel stik
Variant:	Han stik
Farve:	Sort med sølv kontak
