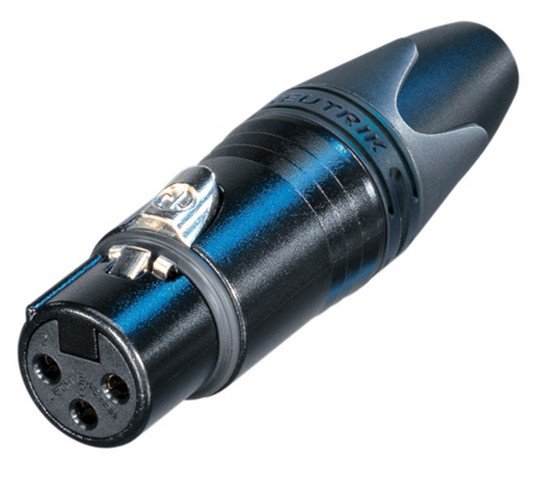

Neutrik NC3FXX-BAG 3P XLR kabelstik hun, Sort

NC3FXX-BAG XLR kabel fatning hun, sort hus

3-polet hunkabelstik med sort metalhus og sølvkontakter.

Den næste generation af den verdensomspændende accepterede standard for XLR-kabelstik. Efterfølgeren til X-serien byder på flere nye funktioner, som gør den mere pålidelig, lettere at samle og forbedrer kontaktintegriteten samt kabeltrækaflastning.

Unique cage design of female contact for low contact resistance and high integrityFemale contact incorporates a solder barrier to prevent solder running into the contact mating areaFemale connector with improved solid metal latch which is larger and easier to handleAdditional ground spring contacts for better shell ground continuityImproved chuck type strain relief provides higher pull-out force and makes assembly easier and fasterBoot with polyurethane gland gives high protection to cable bending stressesColored rings and boots available for coding or identificationSleek and ergonomic design - valuable and handyRugged zinc diecast shell, longlasting and dependableInternal thread on shell is well protected against any damage

Title NC3FXX-BAG
Connection Type XLR
Gender female
Electrical
Capacitance between contacts <= 4 pF
Contact resistance <= 3 mOhm
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GOhm (initial)
Rated current per contact 16 A
Rated voltage < 50 V
Mechanical
Cable O.D. 3.5 - 8.0 mm
Insertion force <= 20 N
Withdrawal force <= 20 N
Lifetime > 1000 mating cycles
Wiresize max. 2.5 mm²
Wiresize max. 14 AWG
Wiring Solder contacts
Locking device Latch lock
Material
Boot Polyurethan
Contact plating 2 µm Ag
Contacts Bronze (CuSn8)
Insert Polyamide (PA66)
Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Shell Zinc diecast (ZnAl4Cu1)
Shell coating Black KTL
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C

Information

Type:	3 pol
Model:	Kabel stik
Variant:	Hun stik
Farve:	Sort med sølv kontak
