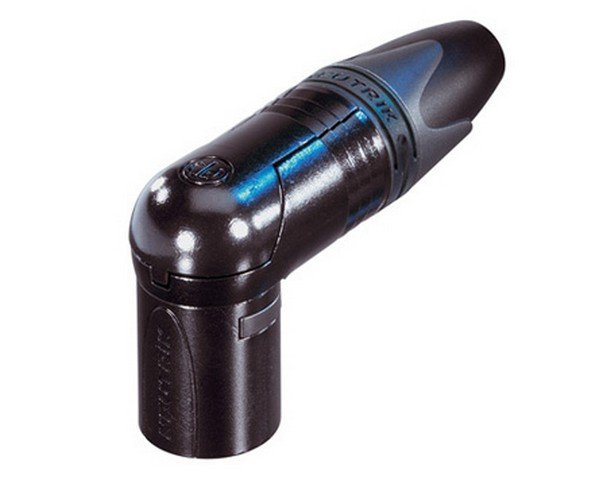

Neutrik XLR kabel han-stik, vinkel, sort hus

NC3MRX-BAG XLR kabel han-stik, vinkel, sort hus

Capacitance between contacts: <= 4 pF
Contact resistance: <= 3 mOhm
Dielectric strength: 1,5 kVdc
Insulation resistance: > 2 GOhm (initial)
Rated current per contact: 16 A
Rated voltage: Cable O.D.: 3.5 - 8.0 mm
Insertion force: <= 20 N
Withdrawal force: <= 20 N
Lifetime: > 1000 mating cycles
Wiresize: max. 2.5 mm²
Wiresize: max. 14 AWG
Wiring: Solder contacts
Locking device: Latch lock
Boot: Polyurethan
Contact plating: 2 µm Ag
Contacts: Bronze (CuSn8)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Zinc diecast (ZnAl4Cu1)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Black chromium
Strain relief: Polyacetal (POM)FlammabilityUL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C

Information

Type:	3 pol
Model:	Kabel stik
Variant:	Han stik
Farve:	Sort med sølv kontakter
