Neutrik XLR chassis han-stik 5-polet

Beskrivelse

Specifikationer

Beskrivelse

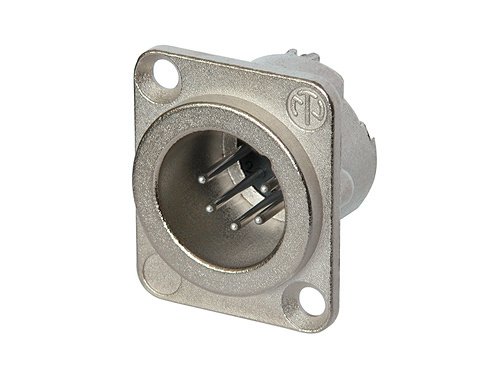

NC5MDLX XLR chassis han-stik 5-polet

5 polet hanstik, loddekopper, Nikkelhus, sølvkontakter

DLX-serien har et kompakt metalhus med en genial duplex jordkontakt, som tilbyder fremragende RF-beskyttelse og afskærmning.

ll metal housing offers best overall RF protection and electromagnetic shieldingDuplex ground contact for excellent contact integrity between chassis and cable connectorMale connector's retention bar replaces plastic design with all metal version improving pull-out forceLarger solder contacts for easier terminationOptional connection to easily join pin1 to chassis groundD-style housing provides installation compatibility with industry standard D mounting dimensions

Title NC5MD-LX
Connection Type XLR
Gender male
Electrical
Capacitance between contacts ? 7 pF
Contact resistance ? 5 m?
Dielectric strength 1,5 kVdc
Insulation resistance > 10 G? (initial)
Rated current per contact 7,5 A
Rated voltage < 50 V
Mechanical
Insertion force ? 20 N
Withdrawal force ? 20 N
Lifetime > 1000 mating cycles
Wiresize max. 1.0 mm²
Wiresize max. 18 AWG
Wiring Solder contacts
Locking device Latch lock
Chassis shape D
Material
Contact plating 2 µm Ag
Contacts Brass (CuZn35Pb2)
Insert Polyamide (PA66)
Locking element Steel Ck67
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Environmental
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
