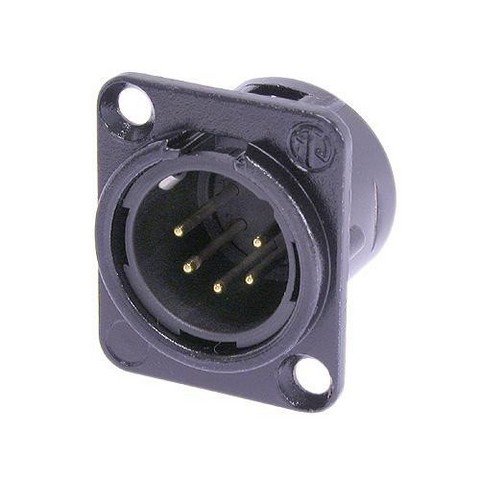

Neutrik XLR chassis stik, sort hus & guldkontakt

Neutrik XLR chassis stik, sort hus & guldkontakt

50,39 DKK (inkl. moms)
5 pole male receptacle, solder cups, Nickel housing, gold contacts
Universal D-size metal body XLR panel mount series. UL recognized component.
Model/Varenr.: NC5MDL1-B
Leverandør varenr.: NC5MDL1-B
Lagerstatus:På lager - kan sendes i dag
Favoritliste
Inkl. moms
                0
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                1
                                                                        2
                                                                        3
                                                                        4
                                                                        5
                                                                        6

Beskrivelse

Neutrik NC5MDL1-B

5 polet hanstik, loddekopper, Nikkelhus, guldkontakter
Universal D-størrelse metalhus XLR panelmonteringsserie. UL anerkendt komponent.




Title NC5MD-L-B-1
Connection Type XLR
Gender male
Electrical
Capacitance between contacts ? 7 pF
Contact resistance ? 5 m?
Dielectric strength 1,5 kVdc
Insulation resistance > 10 G? (initial)
Rated current per contact 7,5 A
Rated voltage < 50 V
Mechanical
Insertion force ? 20 N
Withdrawal force ? 20 N
Lifetime > 1000 mating cycles
Wiresize max. 1.0 mm²
Wiresize max. 18 AWG
Wiring Solder contacts
Locking device Latch lock
Chassis shape D
Material
Contact plating 0.2 µm Au hard alloy over 2 µm Ni
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA66)
Locking element Steel Ck67
Shell Zinc diecast (ZnAl4Cu1)
Shell coating Black KTL
Environmental
Approvals UL
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C

Specifikationer

Information

Type: 5 pol
Model: Chassis stik
Variant: Han stik
Farve: Sort med guld kontakter

Størrelse

Vægt: 0,02
