Neutrik XLR hun kabel fatning 5P. True Outdoor Performance

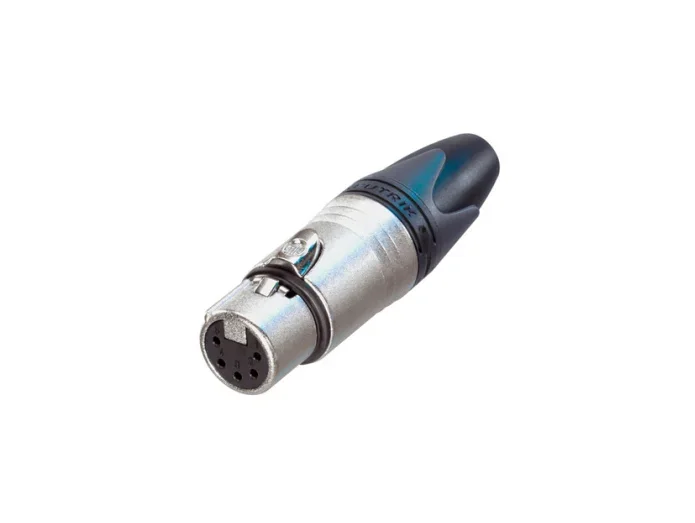

NC5FX-TOP XLR kabel fatning hun 5-polet, True Outdoor Performance

Capacitance between contacts: <= 4 pF
Contact resistance: <= 3 mOhm
Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GOhm (initial)
Rated current per contact: 8,3 A
Rated voltage: Cable O.D.: 5,0 - 8,0 mm
Insertion force: <= 20 N
Withdrawal force: <= 20 N
Lifetime: > 5000 mating cycles
Wiresize: max. 1.5 mm²
Wiresize: max. 16 AWG
Wiring: Solder contacts
Locking device: Latch lock
Bushing UV-resistant rubber
Contact plating: 0,2 µm Au hard alloy over 2 µm Ni
Contacts: Bronze (CuSn8)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: St3K32 (latch) / Ck 67 (spring)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Strain relief: Polyacetal (POM)
Sealing jacket: UV-resistant rubber
Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 65 (when mated)
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C

Information

Type:	5 pol
Model:	Kabel stik
Variant:	Hun stik
Farve:	Sort med guld kontakter

Størrelse

Vægt:	0,03
