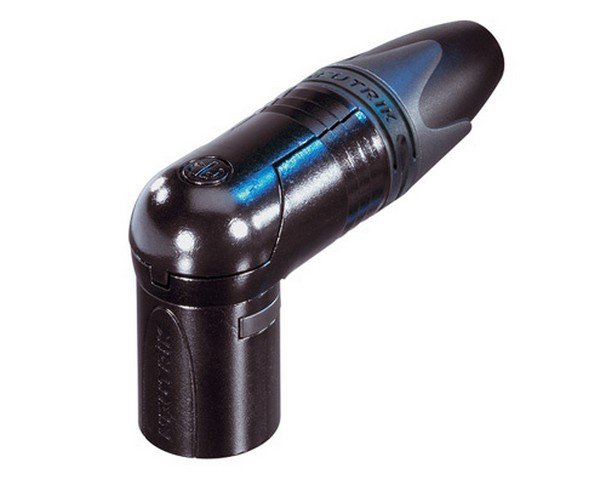

Neutrik XLR kabel han-stik, vinkel, 4 pol guld

NC4MRX-B XLR kabel han-stik, vinkel, guld

Capacitance between contacts: ≤ 7 pF
Contact resistance: ≤ 3 mΩ
Dielectric strength: 1,5 kVdc
Insulation resistance: > 2 GΩ (initial)
Rated current per contact: 10 A
Rated voltage: Cable O.D.: 3.5 - 8.0 mm
Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Wiresize: max. 1.5 mm²
Wiresize: max. 16 AWG
Wiring: Solder contacts
Locking device: Latch lock
Boot: Polyurethan
Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Zinc diecast (ZnAl4Cu1)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Black chromium
Strain relief: Polyacetal (POM)
Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C

Information

Type:	4 pol
Model:	Kabel stik
Variant:	Han stik
Farve:	Sort med guld kontakter

Størrelse

Vægt:	0,049
