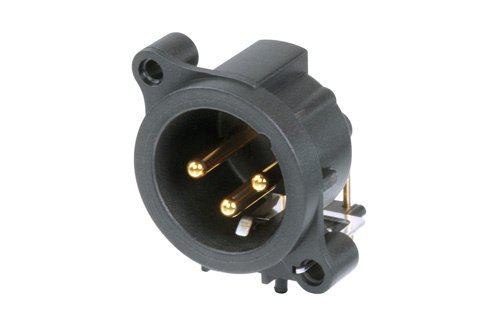

Neutrik XLR chassis han-stik til H-pcb

NC3MAAH-1 XLR chassis han-stik til H-pcb

Capacitance between contacts: <= 4 pF
Contact resistance: <= 6 mOhm
Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GOhm (initial)
Rated current per contact: 6 A
Rated voltage: Grounding Options: Pin 1 connected direct to front panel and connector shell, no separate ground contact
Insertion force: <= 20 N
Withdrawal force: <= 20 N
Lifetime: > 1000 mating cycles

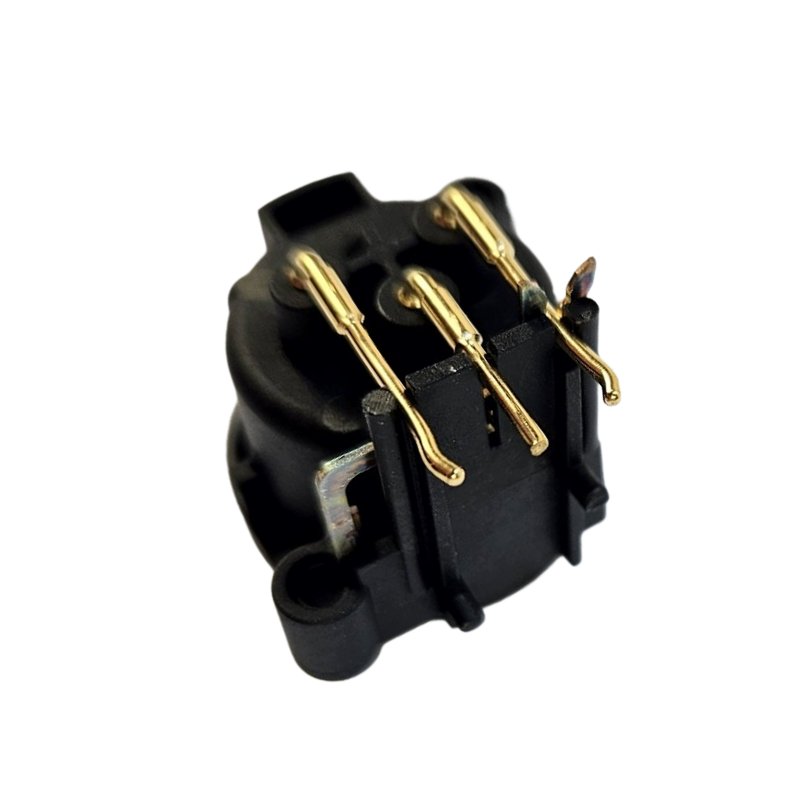

Wiring: Horizontal PCB mount
Locking device: Latch lock
Mounting direction: Rear mounting
Chassis shape: A
Mounting: A-Screw
Contacts: Brass (CuZn35Pb2)
Shell: Polyacetal (POM), Polyamide (PA 6.6 30 % GR)
Approvals: UL
Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C

Information

Type:	3 pol
Model:	Chassis med printben
Variant:	Han stik
Farve:	Sort med guld kontakter

Størrelse

Vægt:	0,006
