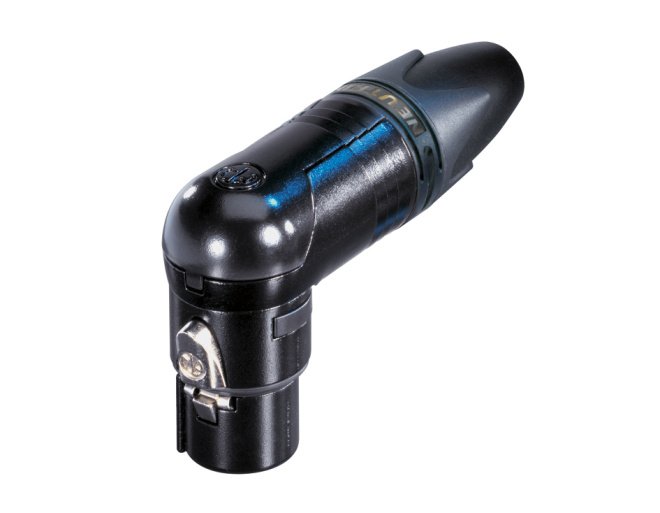

XLR kabelfatning hun 10-pol vinkel, sort hus & guldkontakter

NC10FRX-14-B XLR kabelfatning hun 10-pol, vinkel, sort hus & guldkontakter

Let at samle 8 + 2 pol, højre vinkel, XLR-hunstik, sort kromhus.

Contact resistance: <= 3 mOhm
Dielectric strength: 1 kVdc
Insulation resistance: > 10 GOhm (initial), 0.1 (after damp heat test)
Number of electronical contacts: 8 + 2
Rated current per contact: 16 A (power pins), 3 A (data pins)
Cable shield - shell connection: choosable
Transmission performance: CAT 5e
Cable O.D.: 8.0 - 10.0 mm
Insertion force: <= 20 N
Withdrawal force: <= 20 N
Lifetime: > 1000 mating cycles
Wiresize: 2.5 mm² / AWG 14 (power pins), 1 mm² / AWG 18 (data pins)
Bushing: PA / PU
Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Zinc diecast (ZnAl4Cu1)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Black chromium
Split sleeve: POM
Flammability: UL 94 HB
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
Manufacturing Standard: IEC 61076-2-103

Information

Type:	10 pol
Model:	Kabel stik
Variant:	Hun stik
Farve:	Sort med guld kontakter

Størrelse

Vægt:	0,048
