Beskrivelse

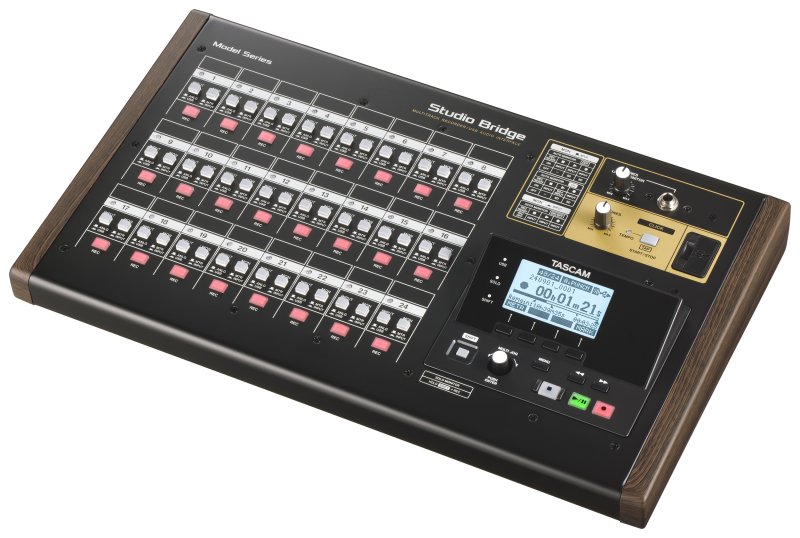

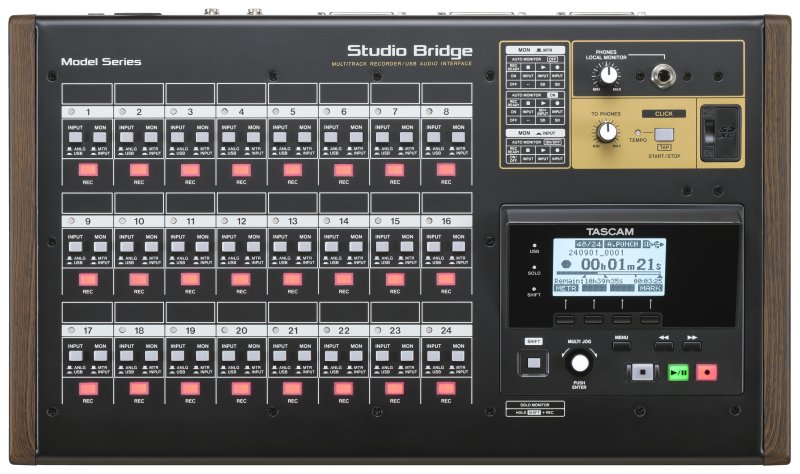

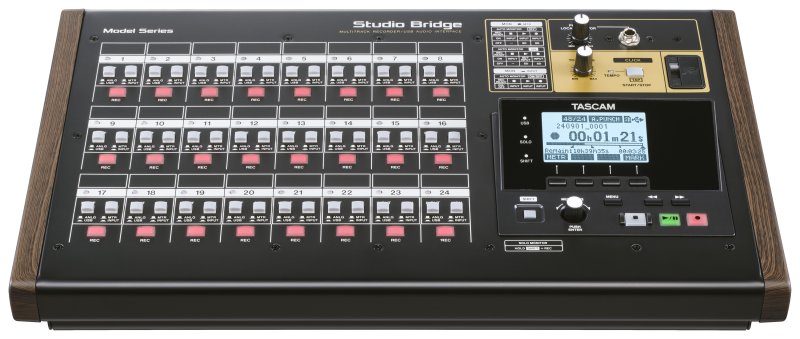

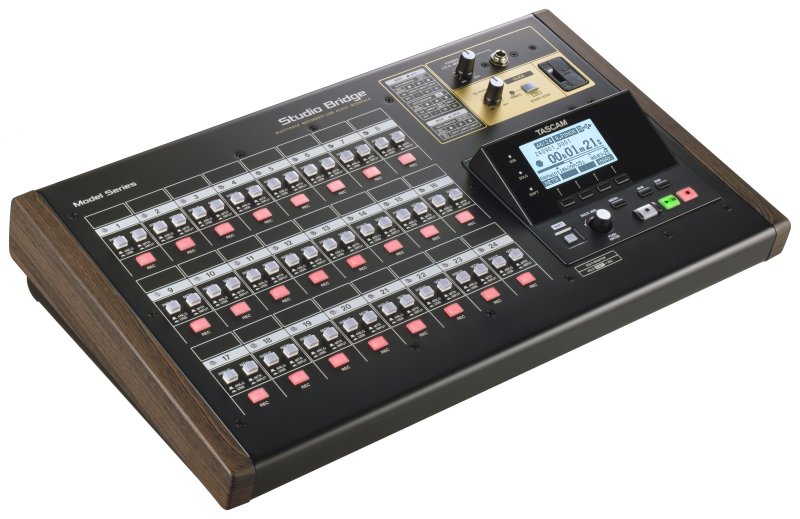

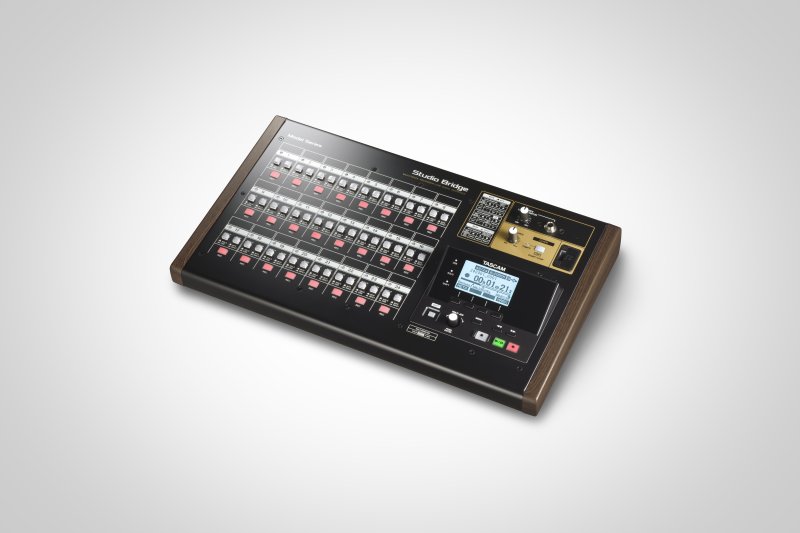

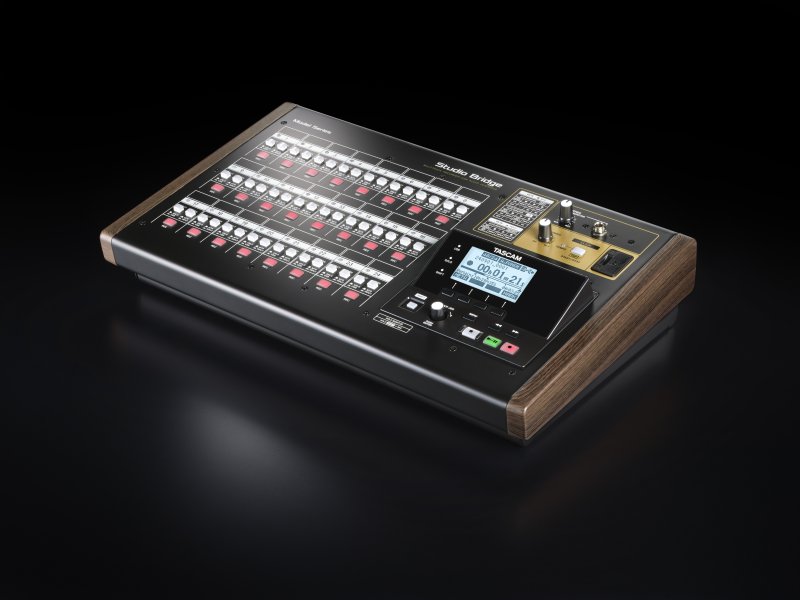

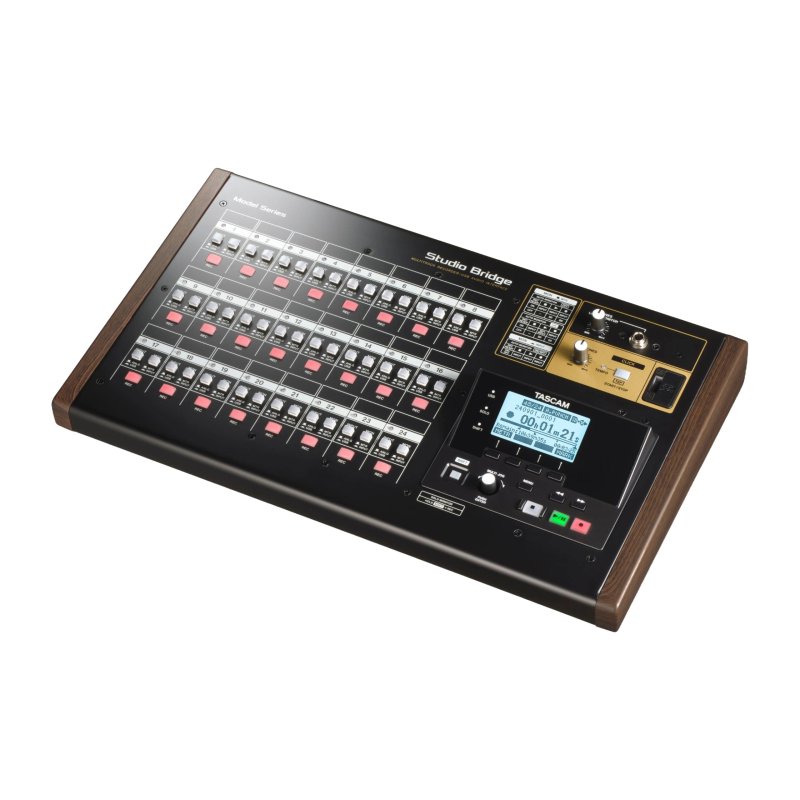

Tascam StudioBridge 24-track recorder
Digital optagelse og blanding med analogt gear på en nem måde
Studio Bridge multitrack-optageren er bogstaveligt talt broen mellem analog mixing og digital optagelse ? uanset om du bruger en DAW eller ej. Bevar den frodige analoge tone fra din mixerpult, mens du optager spor med DAW efter eget valg eller med selve Studio Bridge. Uanset hvad, kan numre returneres til din analoge konsol til mix-summning, hvilket gør digitale optagelser til varme analoge produktioner.
Uanset om du optager i et personligt studie eller i et live-miljø, fungerer Tascam Studio Bridge som et bindeled mellem dit eksisterende udstyr og supplerer det med den nyeste optageteknologi og brugervenlighed i et rack-monterbart format.
24-spors optagelse uden en computer
Tilslut din analoge mixer til den modulære Studio Bridge-optager og optag nemt op til 24 lydspor ? ingen computer kræves.
Du kan endda optage dit stereomix til optageren og eksportere stereo WAV-filer til udgivelsesklare produktioner.
24-In/24-Out Audio/MIDI Interface til DAW'er
Tascam ved, at du vil have ægte analog smag på dine DAW-optagelser, og vi er her for at hjælpe. Din analoge mixer kan nemt forbindes til din DAW ved hjælp af Studio Bridge som et lydinterface med 24 ind- og udgange.
Du kan optage direkte til en hvilken som helst DAW og endda skabe et opsummeret mix ved hjælp af din konsol og påhængsmotor med lydreturnering.
DAW Transport Controller og Dedikeret Meter Bridge Software
Studio Bridge fungerer også som en DAW-transportcontroller. Knapperne Rec/Play/Stop og Rec Ready linker direkte til din DAW for nem brug.
Indstillingspanelet, der er tilgængeligt til Windows og macOS, inkluderer en digital målerbro, så du kan holde øje med lydniveauerne for hvert spor og stereomasteren.
MIDI-synkronisering til dine sequencers
Med MIDI ind/ud-porte kan dine foretrukne trommemaskiner, sequencere, synths og controllere nemt integreres i enhver produktion.
Lås op for din kreativitet med din foretrukne analoge hardware og Studio Bridge.

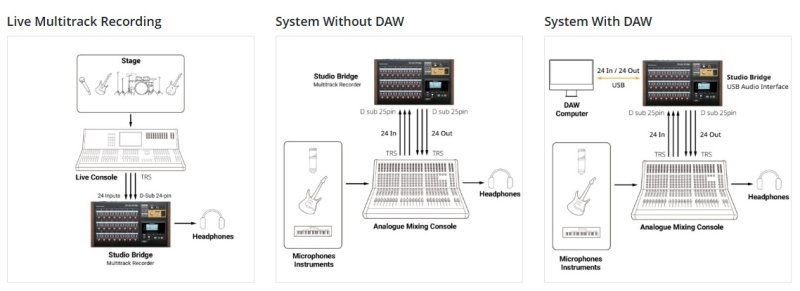

Live-optagelsesapplikationer
I live-miljøer bliver Studio Bridge dit mobile optagestudie, når det er tilsluttet dit mixerbord.
Kun ét stykke gear ? intet komplekst system, ingen computer påkrævet.
Standalone 24-track audio recorder with punch-in/out support
Built-in 24-input/24-output USB audio interface
DAW transport and record-ready control via HUI/MCU
Built-in USB MIDI interface with MIDI in/out connectors
Dedicated settings panel application with virtual meter bridge
24 line-level analogue audio inputs and outputs, each via three Tascam D-sub connectors
WAV (BWF) recording file format (44.1/48 kHz, 16/24 bit)
Records to SD cards up to 512 Gigabytes (SDXC)
Punching in/out on up to 10 tracks simultaneously
Auto Monitor function to automatically listen to the input or track signals while recording or rehearsing
Track swapping allows to record to different tracks using the same input settings (can also be used with the main stereo tracks for bouncing or ping-pong recording)
Headphones output (2 × 80 mW) with level control
MIDI Timecode (MTC) output and MIDI clock output with Song Position Pointer
Audio output for metronome click
Two footswitch inputs for entering the MIDI tempo, switching between play and pause, and more

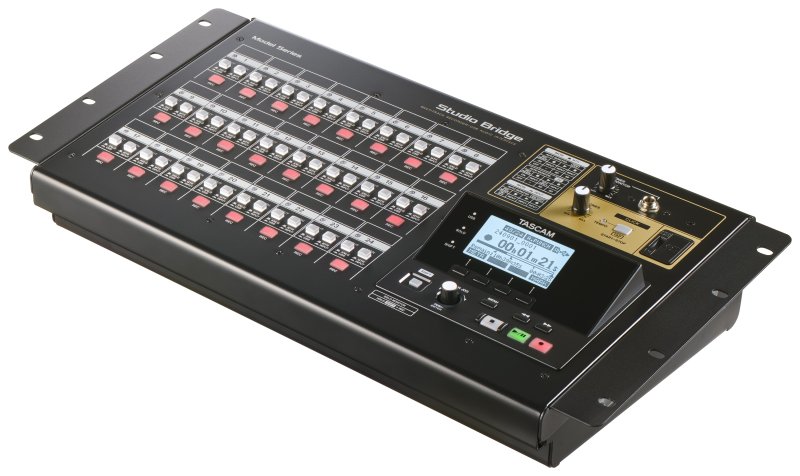

19-inch rack-mountable (mounting kit AK-RMSTBG sold separately)
Recorder
Recording media
SD (Class 10 or higher)
SDHC (Class 10 or higher)
SDXC (up to 512 GBytes, Class 10 or higher)
Recording/playback file format
WAV (BWF), 44.1/48 kHz, 16/24 bit
Recordable tracks
24

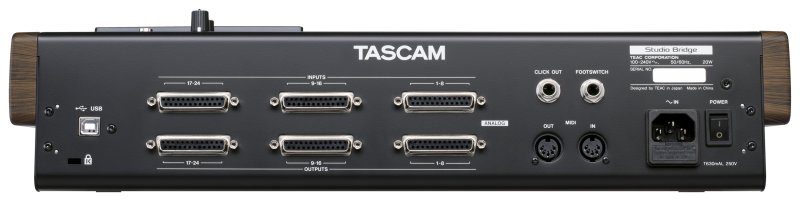

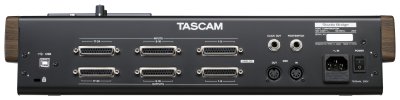

Audio inputs and outputs
Line inputs (1?8, 9?16, 17?24)
25-pin D-sub (DB-25), balanced
Fixing screw
Inch-type No.4-40 UNC
Maximum input level
+24 dBu
Nominal input level
+4 dBu
Input impedance
greater than or equal to 10 kOhm
Line outputs (1?8, 9?16, 17?24)
25-pin D-sub (DB-25), balanced
Fixing screw
Inch-type No.4-40 UNC
Maximum input level
+24 dBu
Nominal input level
+4 dBu
Input impedance
200 Ohm
Phones output
6.3-mm stereo phone jack
Maximum output power
80 mW + 80 mW (at 32 Ohm)
Working impedance
16?600 Ohm
Control inputs/outputs
USB port
USB Type-B
Protocol
USB 2.0 High Speed (480 Mbit/s)
Device class
Mass storage class
USB audio class 2.0
Click output
6.3-mm standard TRS jack (pseudo-balanced)
(Tip: HOT, Ring: COLD, Sleeve: GND)
Footswitch connector
6.3-mm TRS phone jack
(Tip: FOOTSW1, Ring: FOOTSW2, Sleeve: GND, unlatching switches required)
MIDI input and output
5-pin DIN connector
Format
Standard MIDI 1.0
USB audio
Sampling rate
44.1 kHz, 48 kHz
Quantisation bit depth
16 bit, 24 bit
Maximum number of audio channels
24 input channels, 24 output channels
Audio performance
Frequency response
20 Hz to 20 kHz, +0.3/?0.7 dB
Dynamic range
greater than or equal to 100 dB (22 kHz LPF, A-weighted)
Total harmonic distortion (THD+N)
less than or equal to 0.003 % (max. input level, 1 kHz)
Crosstalk attenuation
greater than or equal to 100 dB (1 kHz BPF)
Computer system requirements
Windows
Windows 11
Windows 10 (64-bit)
Compatible computers
Windows-compatible computer with a USB 2.0 (or higher) port, using Tascam driver, operation not guaranteed with ARM64 CPUs
Display requirements (settings panel software)
1280 × 720 or higher,
True colour recommended
Mac
macOS Sonoma (14)
macOS Ventura (13)
Compatible computers
Apple Mac computer with a USB 2.0 (or higher) port
Display requirements (settings panel software)
1280 × 720 or higher,
True colour recommended
iOS/iPadOS devices
iOS 17 / iPadOS 17
iOS 16 / iPadOS 16
Power supply and other specifications
Power
AC 100?240 V, 50/60 Hz
Power consumption
20 W
Dimensions (W × D × H)
447 mm × 270 mm × 115 mm (overall)
415 mm × 270 mm × 115 mm (without side panels)
Weight
4.5 kg
Guaranteed operating temperature range
0?40 °C
Guaranteed operating humidity range
5?85 % (without condensation)
Included items
AC power cord, Safety Guide, Registration Guide
