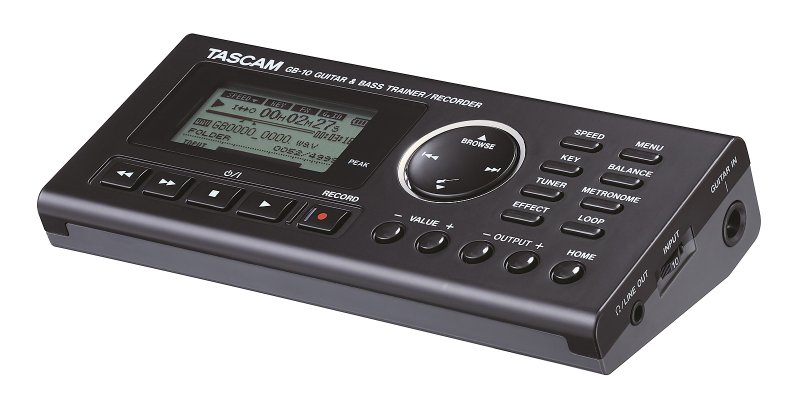

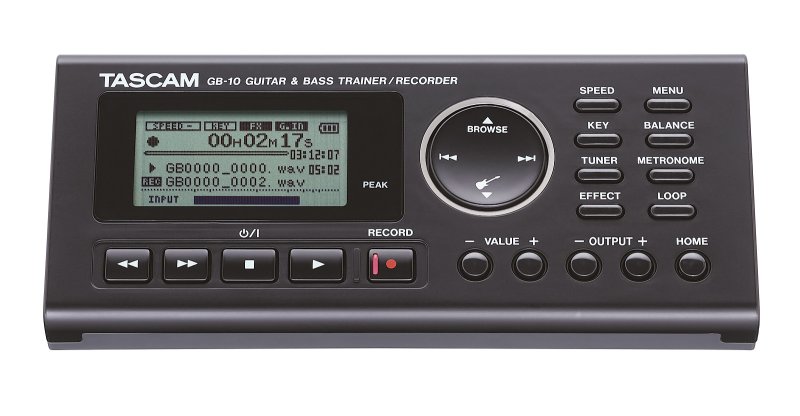

Tascam GB-10 All in one bas og guitar trainer

Tascam GB-10 All in one bas og guitar trainer

GB-10 er en trainer/recorder til guitar og bas. Enheden kan sænke hastigheden og loop'e MP3 og WAV-filer uden at ændre deres toneart. Den tilbyder et 6,3 mm guitar-input og effekter som amp-modeling, delay og reverb. En tuner og metronom er indbygget. GB-10 tilbyder CD-kvalitetsoptagelser med overdub. Et 2 GB SD-hukommelseskort er inkluderet.

Recording media: SD card (64 MB - 2 GB), SDHC card (4–32 GB)
Recording format: WAV (44.1kHz, 16-bit)
Playback formats: WAV (44.1 kHz, 16/24-bit), MP3 (44.1/48 kHz, 32/64/96/128/192/256/320 kbit/s)
Number of input channels: 1 (mono)

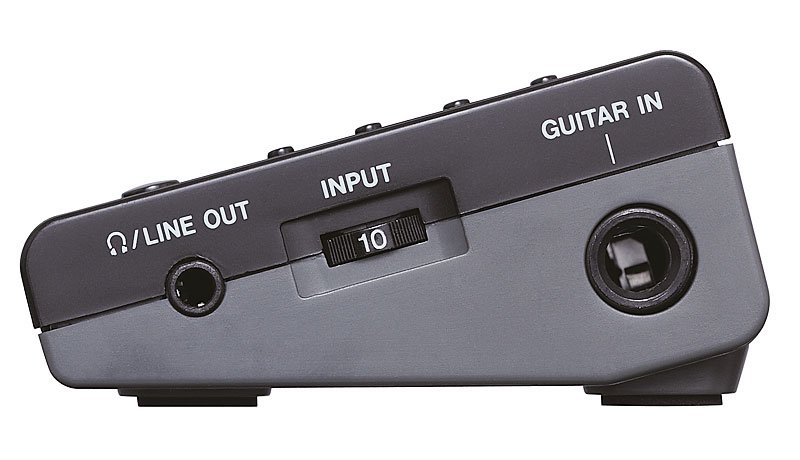

Guitar input: 6.3-mm jack, mono
Input impedance: 800 kΩ
Nominal input level: -13 dBV (INPUT volume at 7)
Maximum input level: +3 dBV (INPUT volume at 7)
Minimum input level: -25 dBV (INPUT volume at 10)
Headphones/line output: 3.5-mm mini jack, stereo
Output impedance: 23 Ω
Nominal output level: -14 dBV (10 kΩ load)
Maximum output level (line): +2 dBV (10 kΩ load)
Maximum output power (headphones): 15 mW + 15 mW (32 Ω load)

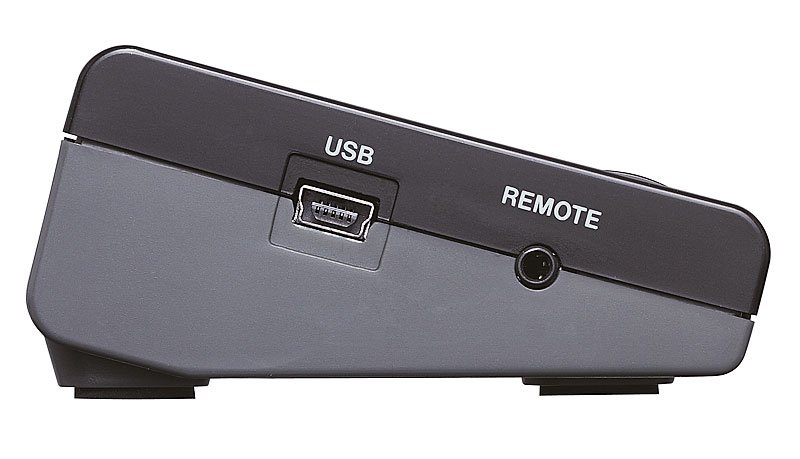

USB port: Mini-B type connector
Format: USB 2.0 High Speed (480 Mbit/s)
Remote connector: 2.5-mm TRS jack
Frequency response: 20 Hz – 20 kHz +1/–5 dB (Fs = 44.1 kHz)
Total harmonic distortion: 0.07% (Fs = 44.1 kHz)
S/N ratio: 70 dB
Windows: Pentium 300 MHz or faster, 128 MB or more memory, USB port (USB 2.0 recommended)
Mac: Power PC, iMac, G3, G4 266 MHz or faster, 64 MB or more memory, USB port (USB 2.0 recommended)
Recommended USB host controller: Intel chipset
Supported operating systems: Windows XP , Windows Vista , Windows 7, Mac OS X 10.2 or later
Power supply: Two AA batteries (Alkaline or Ni-MH), AC adapter (TASCAM PS-P520, sold separately), USB bus power
Power consumption: 0.4 W (MP3 playback)
Battery operation time (continuous operation)
Alkaline batteries: About 13 hours (WAV recording), About 13.5 hours (WAV or MP3 playback)
Ni-MH batteries: About 11 hours (WAV recording), About 11.5 hours (WAV or MP3 playback)
Dimensions (W x H x D): 158 x 30 x 70 mm
Weight: 0.16 kg (without batteries)
Operating temperature range: 0–40 °C
