Beskrivelse

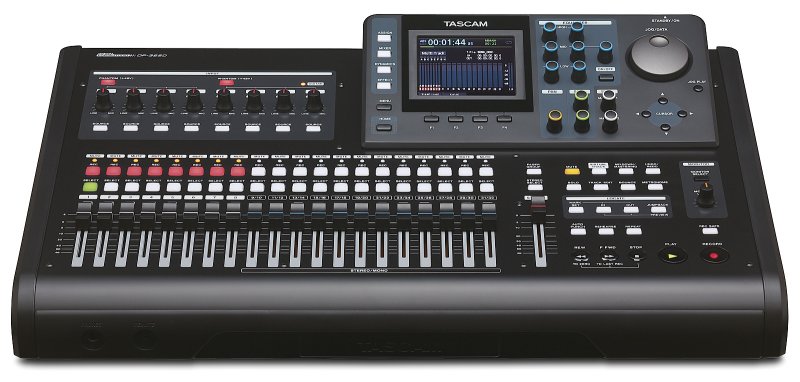

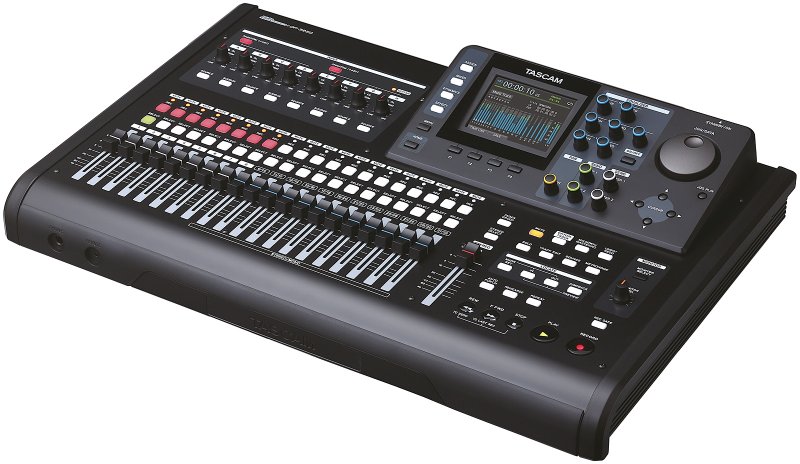

Tascam DP-32SD Digital 32 track recorder
DP-32SD er en home recording Portastudio med 32 spor og SD-hukommelseskort. Enheden er udstyret med farve-LCD og channel-strip-kontrol. Op til otte spor kan optages samtidigt på et standard SD-kort. Input-processering som kompression og limiting, en intern sendeeffekt med reverb, delay og chorus, guitar-amp-simulation og multi-effekter såvel som en ekstern effektsender, er tilgængelige under optagelse. De færdige optagelser kan overføres til en computer via USB.
Recording media:
SD card (512 MB to 2 GB), SDHC card (4-32 GB)
File system: SD card (512 MB to 2 GB): FAT16, SDHC card (4-32 GB): FAT32
MIC/LINE INPUTS A-H, XLR (balanced):
Connector: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Input impedance: 2.4 kOhm
Nominal input level: -14 dBu
Maximum input level: +2 dBu
MIC/LINE INPUTS A-H, phone jack (balanced):
Connector: 6.3-mm TRS phone jack
Input impedance: >22 kOhm or 1 MOhm (INPUT H, when LINE-GUITAR switch is set to GUITAR)
Nominal input level: +4 dBu
Maximum input level: +20 dBu
STEREO OUT L/R connectors:
RCA pin jack
Nominal output level: -10 dBV
Maximum output level: +6 dBV
Output impedance: 200 Ohm
EFFECT SENDS 1/2 connectors:
6.3-mm TS phone jack
Nominal output level: -10 dBV
Maximum output level: +6 dBV
Output impedance: 200 Ohm
MONITOR OUT L/R connectors:
6.3-mm TRS phone jack
Nominal output level: -2 dBu
Maximum output level: +14 dBu
Output impedance: 200 Ohm
PHONES connector:
6.3-mm TRS phone jack
Maximum output power: 70 mW + 70 mW or more (THD + N 0.1% or less, 32 Ohm load)
USB connector:
USB 4-pin mini-B type
Format: Mass Storage Class USB 2.0 High Speed
REMOTE connector:
2.5-mm TRS jack
Audio performance:
Frequency response: 20 Hz to 20 kHz, +1/-1 dB (MIC/LINE INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)
Distortion: 0.01 % (MIC/LINE INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)
S/N ratio: 90 dB (MIC/LINE INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)
System Requirements:
Windows: Pentium 300 MHz or faster, 128 MB or more memory
Mac: Power PC, iMac, G3, G4 266 MHz or faster, 64 MB or more memory
Recommended USB port: USB 2.0
Recommended USB host controller: Intel chipset
Supported operating systems: Windows 8 (including 8.1), Windows 7, Windows Vista, Windows XP, Mac OS X 10.9 (Mavericks), Mac OS X 10.8 (Mountain Lion), Mac OS X 10.7 (Lion), Mac OS X 10.6 (Snow Leopard)
Power supply:
AC adaptor (GPE248-120200-Z)
Power consumption: 12 W (Phantom power on)
Dimensions:
(W x H x D, excluding projections): 514 x 101 x 337 mm
Weight: 6.2 kg
Operating temperature: 5-35 °C
