Beskrivelse

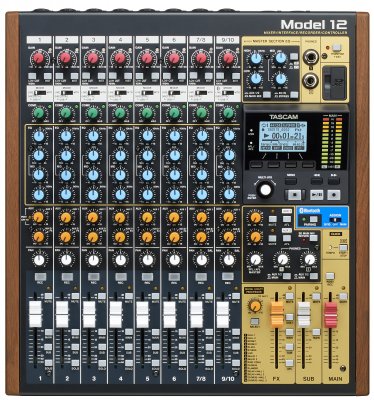

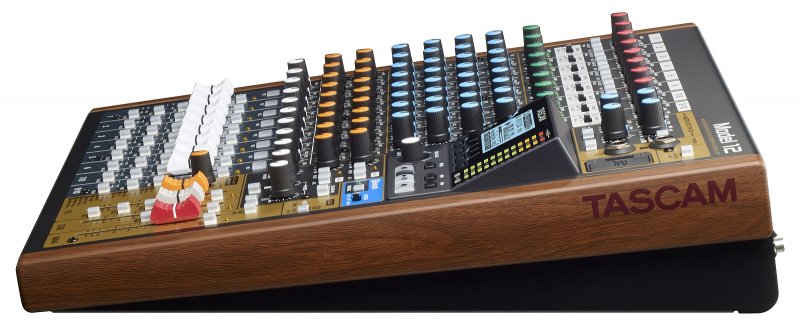

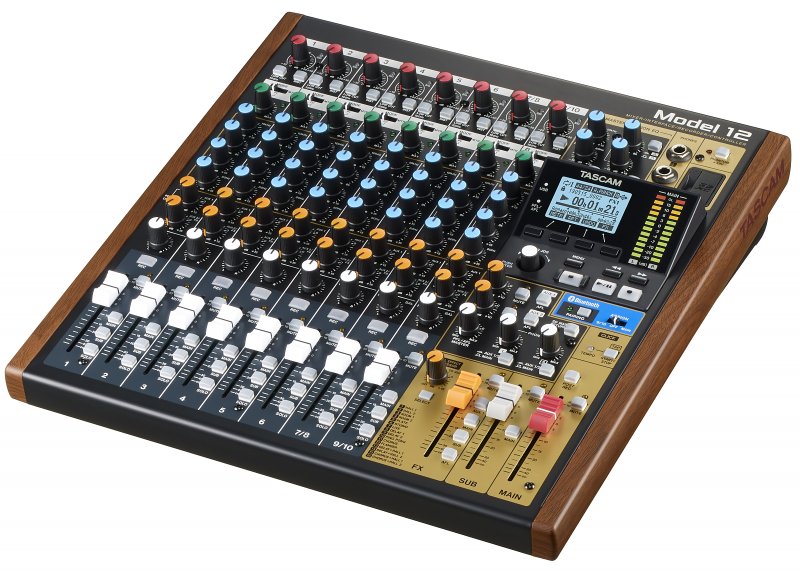

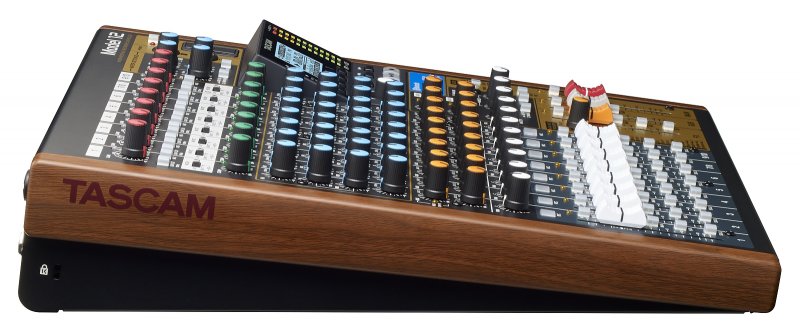

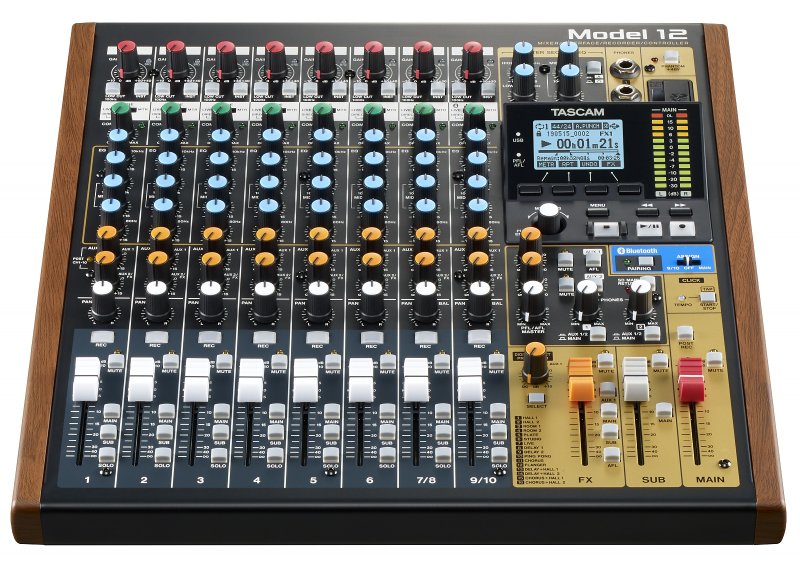

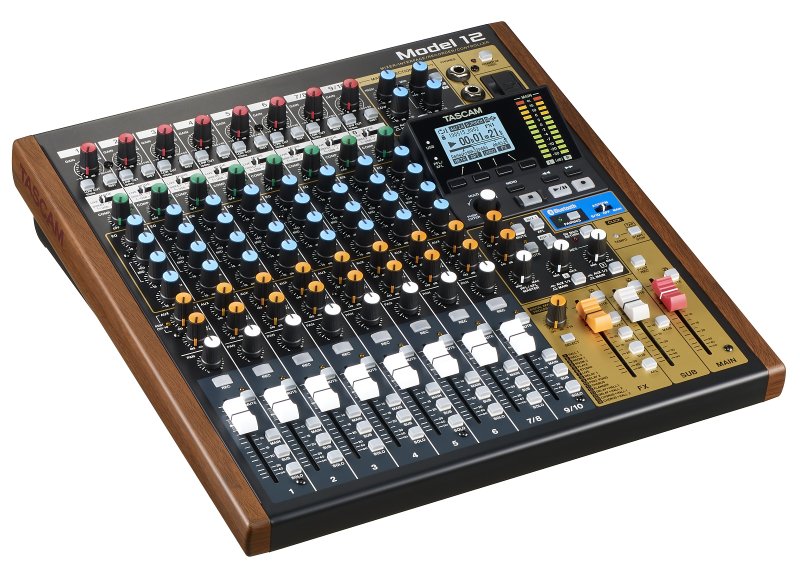

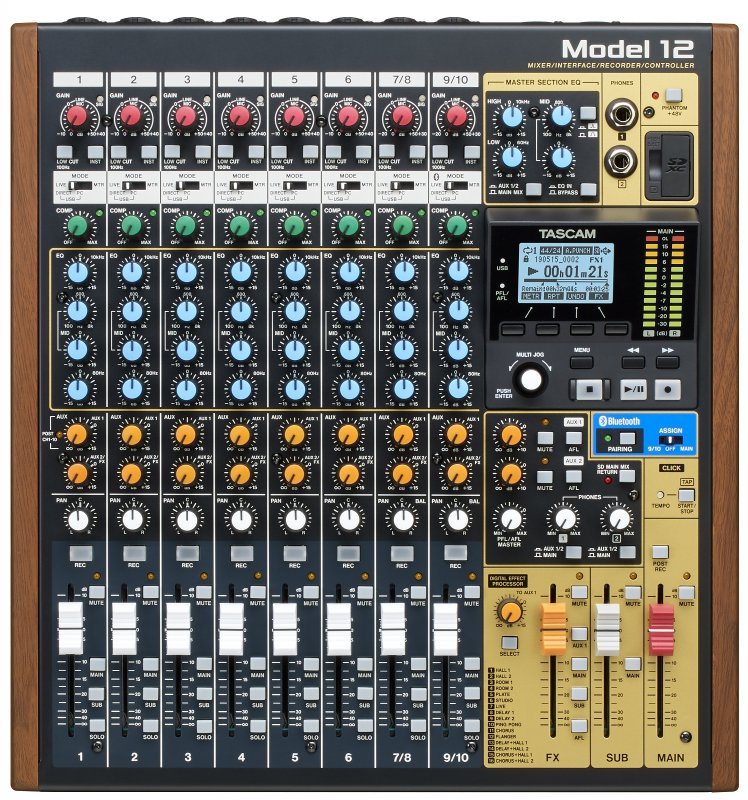

Tascam Model 12 analog mixer med Digital 12 track recorder
Integrated Production Suite for Music and Multimedia Creators
Tascam Model 12 er en kompakt alt-i-en integreret mixer og optagelsessystem designet til musik- og multimedieproducenter, sangskrivere og artister.
Den består af en 10-input mixer, en 12-spor af den meget anerkendte Tascam multi-track optager, USB-interface, MIDI-forbindelse, DAW-kontrolfunktioner og unik podcasting-funktion inklusive mix-minus og smartphone-input.
Ved at kombinere følelsen af en analog brugergrænseflade med den effektive arbejdsgang og uberørt kvalitet, der er forbundet med digital optagelse og produktion, understøtter den kompakte og overkommelige Model 12 din kreative proces fra start til slut.
Multitrack recorder, livemixer og Podcast mixer
12-Track Recording and 10-Track Playback
12 In / 10 Out USB Audio Interface for DAW Connectivity
Click Output With Tap Tempo Feature
Combine Your Setup With MIDI Equipment
Podcast Your Latest Music and Live Performances to Your Fan Base
All-in-One Audio Production From Recording to Mastering
Pristine Audio Quality
Compact Size With Plenty of Inputs
Dual Headphones Outputs for Creative Teamwork
10-channel mixer with built-in 12-track recorder and USB audio interface
Mixer features
Ten analogue inputs on six mono and two stereo channels
Eight mono mic inputs on XLR connectors with switchable phantom power (48 V)
Ultra-HDDA microphone preamps on inputs 1-6
Eight channels can be used with high-impedance instruments like electric guitars/basses
Ten balanced line inputs (six mono, two stereo)
Multi-purpose stereo channel for input from mobile devices via Bluetooth or TRRS smartphone connector (CH 9/10)
Inserts on input channels 1 and 2
Mix-minus function on smartphone mini-jack input
Two Aux outputs (monitor, effects) and two stereo outputs with independent master faders (Main, Sub)
Monitoring can be selected between PFL (pre-fader), AFL (after-fader) and SIP (solo-in-place)
Dedicated click output with tap tempo feature
One-knob compressor for all input channels
Three-band equalizer with sweepable mids for all input channels
Switchable low-cut filter (100 Hz) on each channel
Semi-parametric EQ with sweepable mid band for aux or main outputs
Built-in Bluetooth receiver for wireless playback
On-board effects processor 16 effects types
Can be used on all input channels, aux busses, sub and main stereo bus
Can be turned on/off by an optional footswitch (Tascam RC-1F)
Compact 60-mm faders
12-segment LED output level meters
XLR balanced outputs for main stereo bus
TRS balanced outputs for sub and aux outputs
Two headphones outputs with separate level controls
Recorder features
Tascam multi-track recording engine, uses SD cards as storage media (up to 128 GB)
Up to 12 tracks (10 input channels + stereo mix) can be recorded without the need for a computer
Recording/playback format: Linear PCM (WAV format, 44.1/48 kHz, 16/24 Bit)
Overdubbing, punch in/out recording
Multi-track playback for advanced live performance
Illuminated Play/Record/Stop buttons for better legibility in poorly lit environments
Audio interface features
USB audio interface for use with Windows (ASIO) and Mac (Core Audio) computers
Transfer to computer: 12 channels (all 10 inputs + stereo mix)
Transfer from computer: 10 channels, assignable to each channel input
Audio resolution 44.1/48 kHz, 16/24 bit
USB MIDI interface function
Simple DAW control support via HUI/MCU protocol emulation
Other features
MIDI input and output
Support for MIDI timecode (MTC) and MIDI clock output with song position pointer (SPP)
Simple and quick menu operation with multi-jog dial
Recorder
Recording media
SD (512 MB - 2 GB)
SDHC (4-32 GB)
SDXC (64-128 GB)
Class 10 or higher required
File system FAT16 (SD), FAT32 (SDHC), exFAT (SDXC)
Recording file format WAV (BWF, maximum file size: 2 GB)
Playback formats WAV (BWF)
Sampling frequency 44.1 kHz, 48 kHz
Bit depth 16 bit, 24 bit
Recordable channels 12 channels max. (10 inputs + stereo mix)

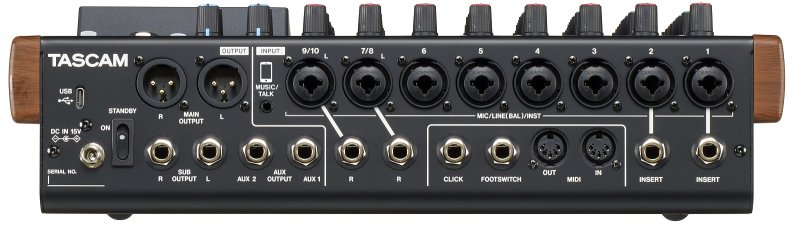

Audio inputs and outputs
Microphone inputs (CH 1-6, 7/8, 9/10) XLR-3-31, balanced
(1: GND, 2: HOT, 3: COLD)
Nominal input level -8 dBu
Maximum input level +10 dBu
Minimum input level -58 dBu
Gain adjustable range 0-50 dB
Input impedance 1.8 kOhm
Line inputs (CH 1-10) 6.3-mm TRS phone jack, balanced
(Tip: HOT, Ring: COLD, Sleeve: GND)
Nominal input level +4 dBu
Maximum input level +22 dBu
Gain adjustable range -10 dB to +40 dB (CH 1-6)
-20 dB to +30 dB (CH 7/8, 9/10)
Input impedance 22 kOhm
Instrument inputs (CH 1-6, 7, 9) 6.3-mm TS phone jack, unbalanced
(Tip: HOT, Ring: GND, Sleeve: GND)
Nominal input level +1.8 dBV
Maximum input level +19.8 dBV
Gain adjustable range -10 dB to +40 dB (CH 1-6)
-20 dB to +30 dB (CH 7, 9)
Input impedance 1 MOhm
Inserts (CH 1-2) 6.3-mm TRS phone jack
(Tip: SEND, Ring: RETURN, Sleeve: GND)
Nominal input level 0 dBu
Maximum input level +18 dBu
Input impedance 5 kOhm
Nominal output level 0 dBu
Maximum output level +18 dBu
Output impedance 100 Ohm
Music/Talk input (CH 9/10) 3.5-mm TRRS mini jack, unbalanced
Maximum input level +8 dBV
Nominal input level -10 dBV
Input impedance 10 kOhm
Main output XLR-3-32, balanced
(1: GND, 2: HOT, 3:COLD)
Nominal output level +4 dBu
Maximum output level +22 dBu
Output impedance 200 Ohm
Sub output, Aux output 6.3-mm TRS, balanced
(Tip: HOT, Ring: COLD, Sleeve: GND)
Nominal output level -2 dBu
Maximum output level +16 dBu
Output impedance 200 Ohm
Phones output 1/2 6.3-mm stereo phone jack
Maximum output power 45 mW + 45 mW (at 32 Ohm)
Footswitch connector 6.3-mm TS phone jack (Tascam genuine footswitch RC-1F recommended)
EQ
Channel EQ
Low cut 100 Hz, -12 dB/Oct.
High (shelving) 10 kHz, ±15 dB
Mid (peaking) variable 100 Hz to 8 kHz, ±15 dB (Mono)
fixed 600 Hz, ±15 dB (Stereo)
Q = 0.5
Low (shelving) 80 Hz, ±15 dB
Master EQ
High (shelving) 10 kHz, ±15 dB
Mid (peaking) variable 100 Hz to 8 kHz, ±15 dB, Q = 0.5/5
Audio performance
Residual output noise -103 dBu
(MAIN OUT, MAIN fader at nom.)
Equivalent input noise (EIN) -128 dBu
(Mono input channel at 150 Ohm, GAIN at max.)
Total harmonic distortion (THD+N) MAIN OUT, 1 kHz, GAIN at min., +2 dBu)
Frequency response 20 Hz to 20 kHz, ±0.5 dB (MIC IN-> MAIN OUT)
Channel crosstalk -95 dB
(1 kHz, PAN fully counter-clockwise / fully clockwise)
Maximum gain 74 dB (MIC to MAIN OUT)
50 dB (MIC to INSERT OUT)
74 dB (MIC to SUB OUT)
75 dB (MIC to AUX 1/2 OUT)
24 dB (USB/SD to MAIN OUT)
(all EQs flat, PAN fully counter-clockwise / fully clockwise)
Phantom Power DC 48 V
Computer system requirements
Windows
Compatible computers Windows-compatible computer with a USB 2.0 (or higher) port
CPU type/speed Dual core, 2 GHz or faster
Memory 2 GB or more
Drivers USB Audio Class 2.0, ASIO 2.0, WDM (MME)
Screen resolution 1280 px × 800 px or more
Macintosh
Compatible computers Apple Mac computer with a USB 2.0 (or higher) port
CPU type/speed Dual core, 2 GHz or faster
Memory 2 GB or more
Driver Core Audio
Screen resolution 1280 px × 800 px or more
USB audio specifications
Sampling rate 44.1 kHz, 48 kHz
Bit depth 16 bit, 24 bit
Maximum number of audio channels 12 inputs, 10 outputs
Bluetooth® Version 5.0
Output class Class 2
(approximate transmission distance: 10 m)
The transmission distance is approximate. The transmission distance could vary depending on the surrounding environment and electromagnetic disturbances.
Supported profile A2DP
Supported A2DP codecs SBC, AAC
A2DP content protection SCMS-T
Power supply and other specifications
Power supply Tascam AC adapter (included, input voltage AC 100-240 V, 50/60 Hz)
Power consumption 16 W
Dimensions (W × D × H, overall) 343 mm × 360 mm × 99 mm
Weight 4.3 kg
Permissible operating temperature range 5-35 °C
Included items AC adapter, Owners manual incl. warranty
