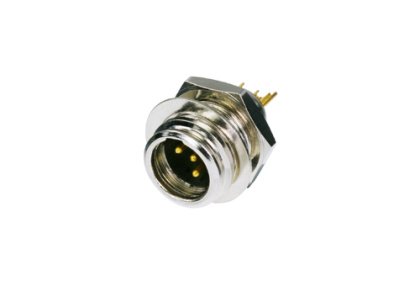

REAN Mini XLR chassis bøsning 4-pol (maks. 6 mm panel)

RT4MP Mini XLR chassis bøsning REAN, 4-pol (maks. 6mm panel)

4 polet Mini han XLR chassis-bøsning, nikkelhus, forgyldte kontakter, (maks. 6mm panel).

Contact resistance: Dielectric strength: > 0.5 kVdc
Insulation resistance: > 1 GOhm
Rated current per contact: Lifetime: > 5000 mating cycles
Panel thickness: max. 6 mm
Wiresize: 0.22 mm²
Wiresize: 24 AWG
Contact plating: Au
Contacts: Brass (CuZn38Pb3)
Insert: PA 6.6 30 % GF
Shell: ZuAl4Cu1
Shell plating: Nickel
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +85 °C

Information

Type:	4 pol
Model:	Chassis stik
Variant:	Han stik
Farve:	Blank - sølv
