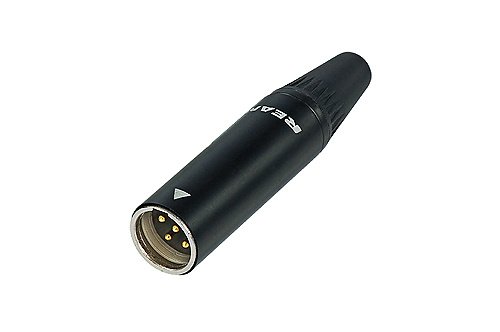

REAN Mini XLR han kabelstik 4-pol, sort hus

RT4MC-B Mini XLR stik REAN, 4-polet, sort hus

4 polet Mini han XLR kabelstik, sort metalhus, forgyldte kontakter.

Contact resistance: Dielectric strength: > 0.5 kVdc
Insulation resistance: > 1 GOhm
Rated current per contact: Cable O.D.: 2.0 - 4.0 mm
Lifetime: > 5000 mating cycles
Wiresize: 0.22 mm²
Wiresize: 24 AWG
Wiring: Solder contacts
Bushing: ABS / TPU
Contact plating: Au
Contacts: Bronze (CuSn6)
Insert: PA 6.6 30 % GF
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Black
Strain relief: POMSolderabilityComplies with IEC 68-2-20
Temperature range: -30 °C to +85 °C

Information

Type:	4 pol
Model:	Kabel stik
Variant:	Han stik
