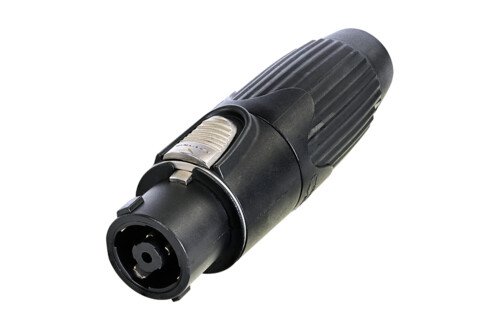

Neutrik 8 pol SpeakON kabelstik, hun, Sort

NLT8FXX

8-polet hunkabelstik, metalhus, trækaflastning af borepatron, loddekontakter

Dette stik er accepteret i lydudstyr designet i henhold til IEC 62368-1 på grund af dets komponentcertificering i henhold til IEC 61984.

speakON STXX-serien er specielt designet til heavy duty forstærker-højttalerapplikationer som professionel touring. Den ekstremt robuste og holdbare STXX-serie har et metalhus.


Title NLT8FXX-BAG
Gender female
Electrical
Contact resistance < 2 m
Dielectric strength 1.5 kVac
Insulation resistance > 0.1 G (after dampheat)
Rated current per contact 30 A rms continuous (acc. to IEC 61984)
Rated voltage 250 V ac
Attention speakON is NOT to be used as an mains or power supply connector (AC / DC)!
Mechanical
Cable O.D. 8 - 20 mm
Cable retention 220 N (subject to cable O.D. and material)
Lifetime > 5000 mating cycles
Wiresize 1.5 mm² - 6 mm²
Wiresize 10 AWG
Termination Solder contacts
Locking device Quick Lock (latch)
Material
Contact plating Ag
Contacts Copper Alloy
Shell Zinc diecast, KTL coating
Insert Polyamide (PA 6.6)
Locking element Zinc diecast
Strain relief Polyacetal (POM)
Environmental
Temperature range -30 °C to +80 °C
Flammability UL 94 V-0
Protection class IP 50 (mated condition)
Solderability Complies with IEC 68-2-20

Information

Variant:	Hun stik
Farve:	Sort
