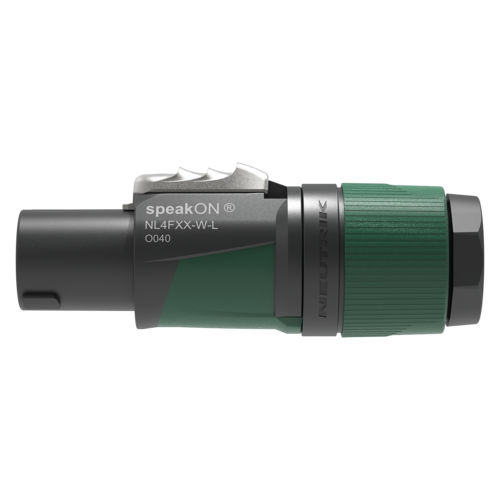

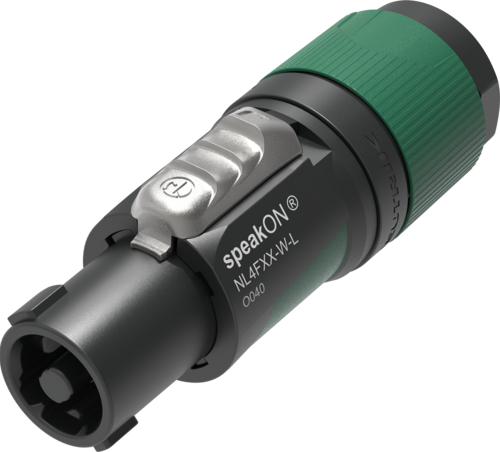

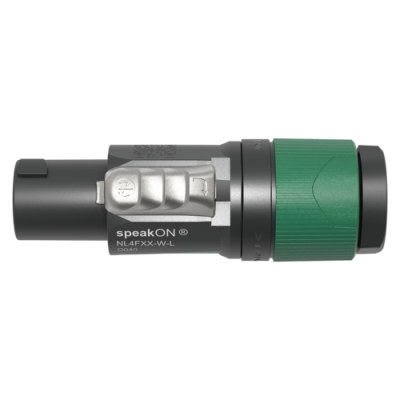

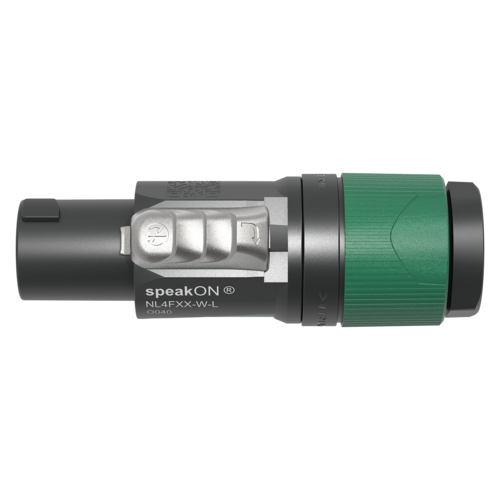

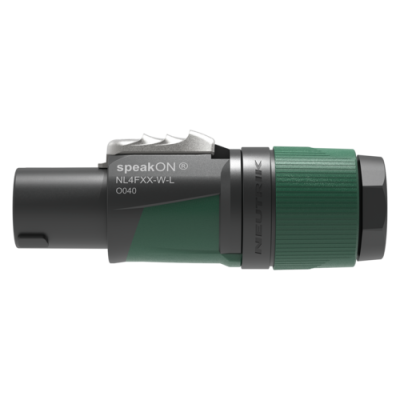

Neutrik 4 pol SpeakON kabelstik 10-16 mm

                0
                                                                                                                                                                                                                                                                                                                                                                                                                        1

Beskrivelse

Specifikationer

Beskrivelse

NL4FXX-W-L
4-polet speakON-kabelstik, skrueterminal, trækaflastning af borepatron til kabeldiametre 10 til 16 mm

speakON-stik er industristandarden for højttalerforbindelser. Denne produktserie tilbyder ekstremt pålidelige og robuste kabelforbindelser med et gennemprøvet drejelåssystem. speakON kabelkonnektorer har solide kontakter med skrueterminaler, inklusive en snoet ledningsbeskyttelse.

Title NL4FXX-W-L
Connector series speakON 4 pole

Electrical
Contact resistance â‰¤ 2 mÎ©
Dielectric strength 2.8 kVac
Insulation resistance > 10 GÎ© (initially)
Number of electrical contacts 4
Rating Europe IEC 61984: 37 A 250 V AC
Rating USA UL1977: 35 A 250 V AC
Rating Canada CSA C22.2 No.182.3: 24 A 250 V AC
Attention This product is strictly not intended for use as an AC or DC power supply connector!
CAUTION: NOT FOR INTERRUPTING CURRENT

Mechanical
Cable O.D. 10 - 16 mm
Lifetime typically 5â€™000 mating cycles
Wiresize (mm²) 1.5 â€“ 4 mm²
Wiresize (AWG) 17 â€“ 11 AWG
Locking device Twist lock
Termination screw type terminals

Material
Contact plating Ag
Contacts Copper Alloy
Insert Polyamide (PA6.6)
Locking element Zinc diecast
Shell Polyamide (PA6) / TPE
Strain relief Polyketone
Bushing Polypropylene / TPE

Environmental
Temperature range -33 °C to +80 °C
Protection class IP20
Flammability acc. to UL94 V-0
