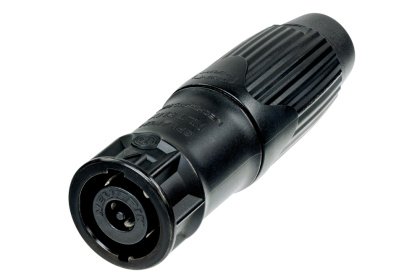

Neutrik SpeakON han kabelstik i metal, sort

NLT8MX-BAG SpeakON han metal kabel stik, sort

8 polet.

Contact resistance: Dielectric strength: 4 kVdc (peak)
Insulation resistance: > 10 GΩ
Rated current per contact: 40 A rms continuous
Rated current per contact: 50 A audiosignal, duty cycle 50 %
Rated voltage: 250 V (Insulation)
Attention: speakON is NOT to be used as an AC mains or power supply connector!
Cable O.D.: 8 - 20 mm
Cable retention: ≥ 220 N (subject to cable O.D. and material)
Lifetime: > 5000 mating cycles
Wiresize: 6 mm²
Wiresize: 10 AWG
Wiring: flat tabs for 1/4'' (FASTON® 6.3 x 0.8 mm) or soldering
Temperature range: -30 °C to +80 °C

Størrelse

Vægt:	0,151
