SpeakON hun metal chassisfatning

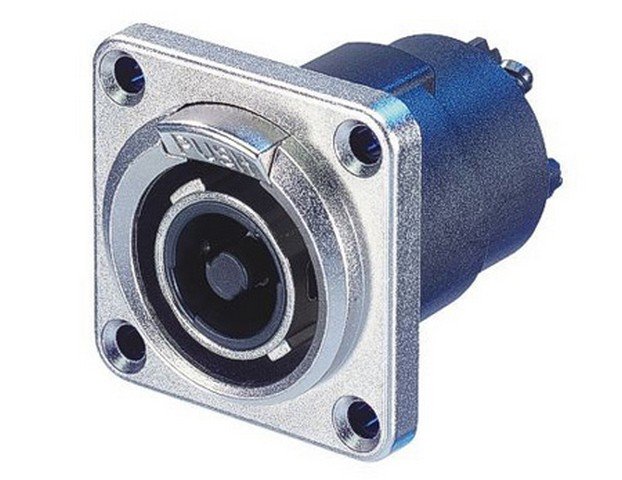

NLT4FP SpeakON hun metal chassisfatning

4 polet.

Contact resistance: Dielectric strength: 4 kVdc (peak)
Insulation resistance: > 10 GOhm
Rated current per contact: 40 A rms continuous
Rated current per contact: 50 A audiosignal, duty cycle 50 %
Rated voltage: 250 V (Insulation)
Attention: speakON is NOT to be used as an AC mains or power supply connector!
Lifetime: > 5000 mating cycles
Wiresize: 6 mm²
Wiresize: 10 AWG
Wiring: Solder contacts
Locking device: Quick Lock
Chassis shape: square G-size flange
Layout: four thru holes
Contact plating: 4 µm Ag
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA 6 30 % GR)
Locking element: Zinc diecast (ZnAl4Cu1)
Shell: Zinc diecast (ZnAl4Cu1) Ni
Flammability: UL 94 HB
Protection class: IP 54 (mated condition)
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C

Størrelse

Vægt:	0,073
