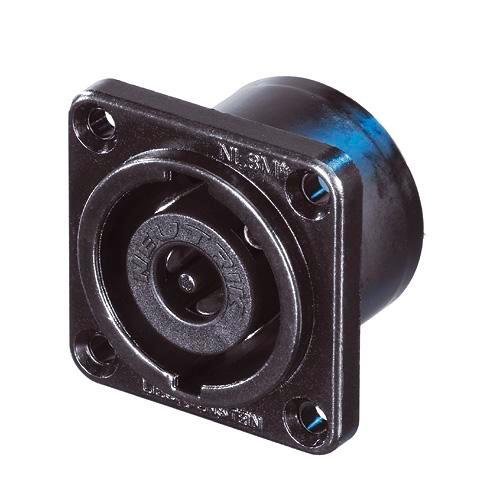

SpeakON han chassis stik med printben, sort

NL8MDV-BAG SpeakON han chassis stik med printben, sort

8 polet.

Contact resistance: <= 3 mOhm (after lifetime)
Dielectric strength: 4 kVdc (peak)
Insulation resistance: > 1 GOhm (after dampheat)
Rated current per contact: 30 A rms continuous
Rated current per contact: 40 A audiosignal, duty cycle 50 %
Rated voltage: 250 V (Insulation)
Attention: speakON is NOT to be used as an AC mains or power supply connector!
Lifetime: > 5000 mating cycles
Wiring: vertical PCB mount
Locking device: Quick Lock
Mounting direction: Rear mounting
Chassis shape: square G-size flange
Layout: four thru holes
Contact plating: 4 µm Ag
Contacts: Bronze (CuSn6)
Shell: Polyamide (PA 6 30 % GR) black chrome
Flammability: UL 94 HB
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C

Størrelse

Vægt:	0,049
