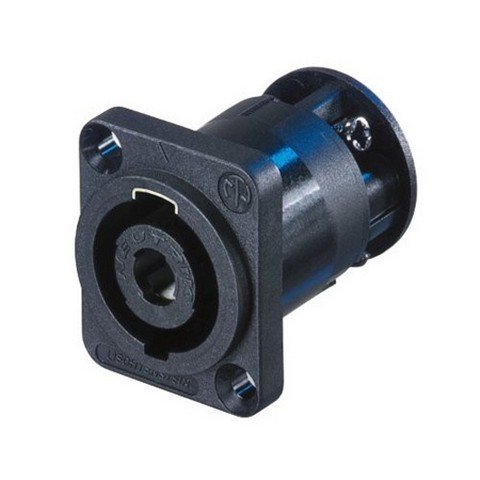

NL4MP-ST SpeakON han chassis stik med skrue-terminaler
4 polet.
Contact resistance: ≤ 3 mΩ (after lifetime) Dielectric strength: 4 kVdc (peak) Insulation resistance: > 1 GΩ (after dampheat) Rated current per contact: 30 A rms continuous Rated current per contact: 40 A audiosignal, duty cycle 50 % Rated voltage: 250 V (Insulation) Attention: speakON is NOT to be used as an AC mains or power supply connector! Lifetime: > 5000 mating cycles Wiresize: 4 mm² Wiresize: 12 AWG Wiring: screw terminals Locking device: Quick Lock Chassis shape: D Layout: standard hole position, thru holes Contact plating: 4 µm Ag Contacts: Bronze (CuSn6) Shell: Polyamide (PA 6 30 % GR) black Flammability: UL 94 HB Solderability: Complies with IEC 68-2-20 Temperature range: -30 °C to +80 °C
