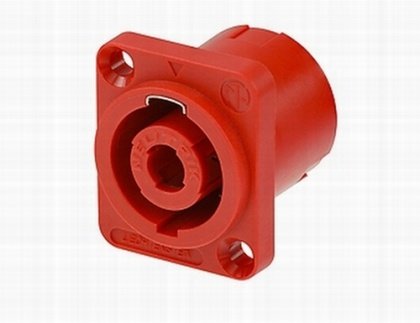

NL4MDV-R SpeakON han chassis stik m/printben, RØD, til brokobling
4 polet.
Contact resistance: ≤ 3 mΩ (after lifetime) Dielectric strength: 4 kVdc (peak) Insulation resistance: > 1 GΩ (after dampheat) Rated current per contact: 30 A rms continuous Rated current per contact: 40 A audio signal, duty cycle 50% Rated voltage: 250 V (insulation) ATTENTION: speakON is NOT to be used as an AC mains or power supply connector! Lifetime: > 5000 mating cycles Locking device: Quick Lock Chassis shape: D Layout: standard hole position, thru holes Contact plating: 4 µm Ag Contacts: Bronze (CuSn6) Shell: Polyamide (6 30% GR) (red) Flammability: UL 94 HB Solderability: Complies with IEC 68-2-20 Temperature range: -30 °C to +80 °C
