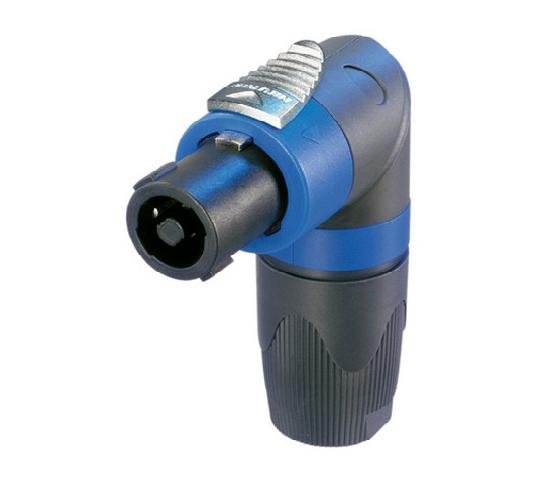

Neutrik NL4FRX SpeakON hun kabel fatning, vinkel

NL4FRX SpeakON hun kabel fatning, vinkel

4 polet.

Contact resistance: Dielectric strength: 4 kVdc (peak)
Insulation resistance: > 1 GΩ (after dampheat)
Rated current per contact: 40 A rms continuous
Rated current per contact: 50 A audiosignal, duty cycle 50 %
Rated voltage: 250 V (Insulation)
Attention: speakON is NOT to be used as an AC mains or power supply connector!
Cable O.D.: 7 - 14.5 mm
Cable retention: ≥ 220 N (subject to cable O.D. and material)
Lifetime: > 5000 mating cycles
Wiresize: 4 mm² / 6 mm² (screw type terminals/soldering)
Wiresize: 12 AWG / 10 AWG
Wiring: screw type terminals or soldering
Locking device: Quick Lock (latch)
Contact plating: 4 µm Ag
Contacts: Brass (CuZn39Pb3)
Insert: PBTP 20 % GR
Locking element: Zinc diecast (ZnAl4Cu1)
Shell: PBTP 20 % GR
Strain relief: Polyacetal (POM)
Flammability: UL 94 HB
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C

Størrelse

Vægt:	0,058
