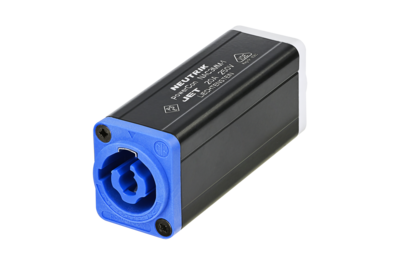

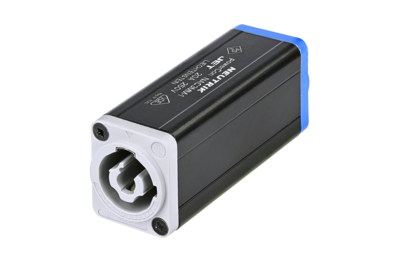

Neutrik PowerCon samleled fra A power in til B power out
Neutrik PowerCon samleled fra A power in til B power out

Neutrik PowerCon samleled fra A power in til B power out

178,00 DKK (inkl. moms)
Neutrik powerCON NAC3MPXXA (strøm ind) - powerCON NAC3MPXXB (strøm ud), CBC-kobler til sammenkobling af strømkabler med NAC3FXXA/B.
Model/Varenr.: NE-NAC3MM-1
Leverandør varenr.: NAC3MM-1
Lagerstatus:På lager - kan sendes i dag
Favoritliste
Inkl. moms

Beskrivelse
NAC3MM-1 PowerCon samleled

powerCON NAC3MPXXA (strøm ind) - powerCON NAC3MPXXB (strøm ud), CBC-kobler til sammenkobling af strømkabler med NAC3FXXA/B.

Product
Title NAC3MM-1
Connection Type Adapter
Gender male
Electrical
Contact resistance <= 3 mOhm
Dielectric strength 4 kVdc
Insulation resistance > 0.1 GOhm (after damp heat test IEC 68-2-30)
Rated current per contact 16 A rms
Rated voltage 250 V ac
Mechanical
Lifetime > 1000 mating cycles
Locking device Quick Lock
Material
Contact plating 2 µm Ag
Locking element Steel Ck67
Shell Polyamide (PA 6.6 30 % GR)
Contacts Bronze (CuNi1Si0.2)
Environmental
Flammability UL 94 V-0
Protection class IP 20 (mated)
Safety Requirements EN/IEC 61984
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C

powerCON
The powerCON is a locking 3 conductor equipment AC connector with breaking capacity using contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
