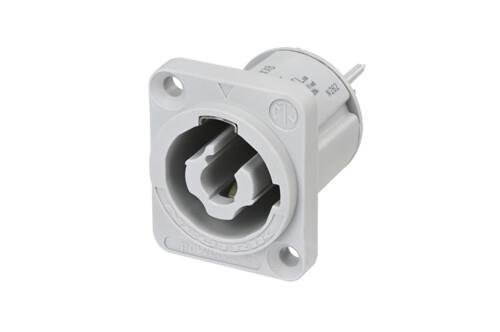

Neutrik PowerCon 3P chassis stik Power Out Grå

Beskrivelse

Specifikationer

Beskrivelse

NAC3MPXXB

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 60320-1.
Appliance inlet connector, 3/16" flat tab terminals, blue
The powerCON XX is a locking mains connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON XX is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Product
Title NAC3MPXXB
Gender male

Electrical
Contact resistance ? 2 m?
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 10 G? (initial)
Number of electrical contacts 2 + PE
Rating Europe EN 60320-1: 16 A 250 V AC
EN 61984: 20 A 250 V AC
Rating USA UL 60320-1:20 A 127 V AC
UL 1977: 20 A 250 V AC

Mechanical
Lifetime > 5000 mating cycles
Wiresize 2,5 mm²
Wiresize 12 AWG

Material
Contact plating Ag
Locking element Stainless steel
Shell Polyamide (PA 6.6)
Contacts Copper Alloy

Environmental
Flammability UL 94 V-0
Protection class IP 20
Temperature range -30 °C to +80 °C

Specifikationer

Information

Model:	Chassis stik
Variant:	Han stik
Farve:	Blå
