Neutrik PowerCon power-in kabel stik 6

Beskrivelse

Specifikationer

Beskrivelse

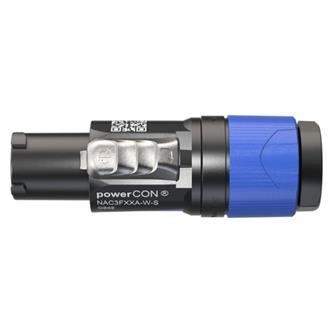

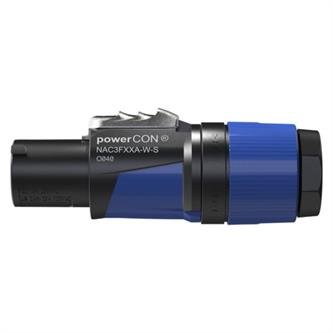

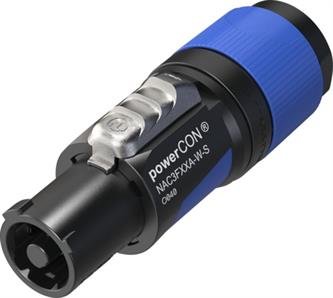

NAC3FXXA-W-S

Power-in PowerCon kabel stik 6 - 12 mm

Locking AC mains cable connector, keyed and color coded (blue) for power-in, screw terminal assembly, for cable diameters 6 - 12 mm.

The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.

It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.

Product
Title NAC3FXXA-W-S
Connector series powerCON blue/grey

Electrical
Contact resistance ? 2 m?
Dielectric strength > 3 kVac (after mating cycles)
Insulation resistance > 10 G? (initially)
Number of electrical contacts 2 + PE
Rating Europe EN 60320-1: 16 A 250 V AC, CBC
Rating USA / Canada cUL 60320-1: 20 A 127 V AC, CBC

Mechanical
Cable O.D. 6 - 12 mm
Lifetime Typically 5?000 mating cycles
Wiresize (mm²) 1.5 ? 2.5 mm²
Wiresize (AWG) 16 ? 12 AWG
Locking device Twist lock
Termination Screw type terminals

Material
Contact plating Ag
Contacts Copper Alloy
Insert Polyamide (PA6.6)
Locking element Zinc diecast
Shell Polyamide (PA6) / TPE
Strain relief Polyketone
Bushing Polypropylene / TPE

Specifikationer

Information

Model:	Kabel stik
Variant:	Hun stik
Farve:	Blå
