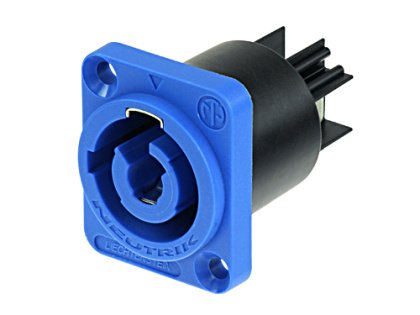

Neutrik PowerCon 3P chassis stik PowerIN blå

NAC3MPA-1 PowerCon 3-pol chassis stik PowerIN blå

NAC3MPA-1 powerCON er et 3-pol, AC-låsestik.

Contact resistance: ≤ 3 mΩ
Dielectric strength: 4 kVdc / 2.8 kVac
Insulation resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
Number of electronical contacts: 2 + PE
Rated current per contact: 20 A rms
Rated voltage: 250 V ac
Lifetime: > 1000 mating cycles
Locking device: Quick Lock
Mounting direction: Front mounting
Chassis shape: D
Contact plating: 2 µm Ag
Locking element: Steel Ck67
Shell: Polyamide (PA 6.6 30 % GR)
Contacts: Bronze (CuNi1Si0.2)
Flammability: UL 94 V-0
Temperature range: -30 °C to +80 °C

Information

Model:	Chassis stik
Variant:	Han stik
Farve:	Blå

Størrelse

Vægt:	0,0115
