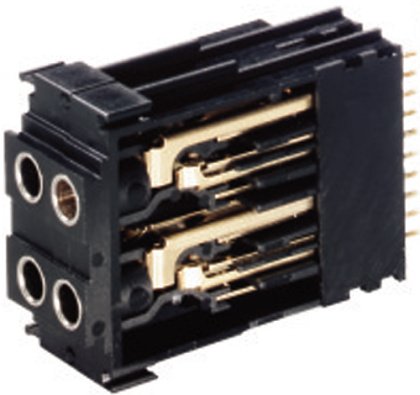

Blok m/2 kanaler til NPPA, fully normalized 24 stk skal bruges til et fuldt NPPA 19" panel

NJ3TTA-4-FN Blok m/2 kanaler til NPPA, fully normalized

Signal Type: Digital suitability acc. AES/EBU (3.072 Mb/s and 6.144 Mb/s)
Contact resistance: 20 mOhm
Contact resistance: Dielectric strength: 1 kVdc
Frequency range: DC to > 50 MHz
Insulation resistance: > 1 G Ohm @ 500 V dc
Channel separation: > 100 dB @ 10 kHz, 600 terminated, > 40 dB @ 6 MHz, 110 terminated
Insertion force: Withdrawal force: > 8 N
Lifetime: > 5000 mating cycles
Contact plating: TRIBOR® (0.2 µm AuCo over 2 µm NiP) (Jacks)
Contacts: Bronze (CuSn6) (Jacks)
Shell: PA 66 blend (Jacks)
Temperature range: -30 °C to +80 °C

Størrelse

Vægt:	0,028
