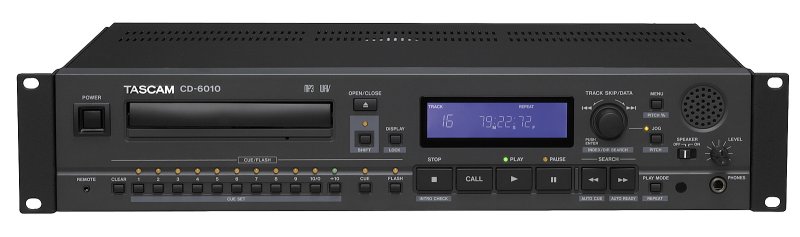

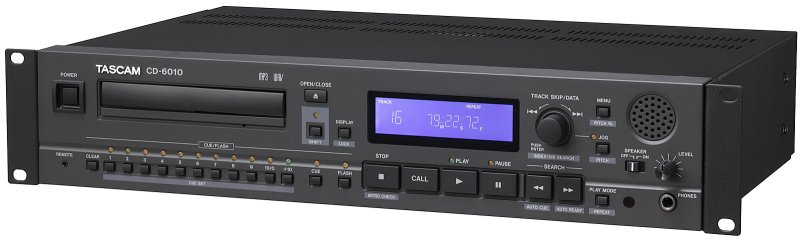

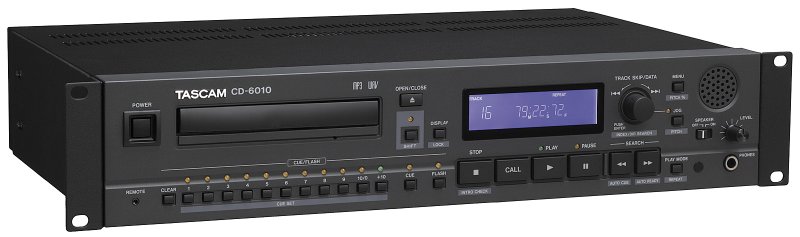

Tascam CD-6010 CD afspiller MP3/WAW 20 track

Tascam CD-6010 CD afspiller MP3/WAW 20 track

CD-6010 tilbyder sublim CD-playback til enhver situation. Den er design specifikt til Broadcast-markedet, CD-afspilleren har et tray-loading-design, sikkerhedsegenskaber og nødstilfældefunktioner til enhver situation. Den benytter et CD-5010B-drive og tilbyder højkvalitetslyd som sjældent matches af andre rack-monterede afspillere. CD-6010 tilbyder også en monitor-højttaler i fronten og har 20 points cue-memory, 20 spor flash-start og understøtter Auto-Cue, Auto-Ready og Incrementel-Play. Enheden tilbyder også ±16% pitch-kontrol til CD-playback-hastighed og op til 100 diske af programhukommelse. På bagsiden sider både XLR-balancerede outputs og RCA-ubalancerede analog-outputs tilbydes, såvel som SPDIF og AES/EBU digital-outputs. CD-6010 kan kontrolleres med RS-232C, parallelkontrol eller en RC-3F footswitch. Brugervenlighed, sikkerheden og de ekstra egenskaber gør CD-6010 til en sublim 2U rack-monterbar CD-afspiller til enhver professionel applikation.

Device type: CD player
Compatible discs: Compact discs (12cm/8cm, including CD-R discs)
Playable disc types: CD-A, CD-ROM (ISO9660 LEVEL 1/2/JOLIET format)
Playable file formats: Audio CD (CD-DA), MP3 (MPEG Audio Layer III), WAV
Audio Modes: stereo/mono
Sampling Frequency: 32 kHz/44.1 kHz/48 kHz
Bit Rate: 32 kbps320 kbps and VBR
Sampling Frequency: 32 kHz/44.1 kHz/48 kHz
Sampling Bit Rate: 16 bit
Sampling Frequency: 44.1 kHz
Sampling Bit Rate: 16 bit
Number of Channels: 2

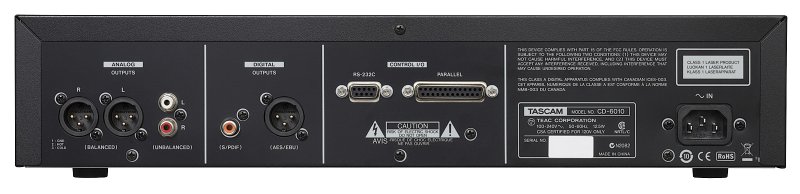

Analog outputs (unbalanced): RCA pin jacks
Output impedance: 200 ohm
Standard output level: -10 dBV (0.32 Vrms)
Maximum output level: +6 dBV (2.0 Vrms)
Analog outputs (balanced): XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Output impedance: 100 ohm
Standard Output level: +4 dBu (1.23 Vrms)
Maximum Output level: +24 dBu (12.28 Vrms)
PHONES connector: 6.3-mm standard stereo jack
Maximum output power: 45 mW + 45 mW or more (THD+N 0.1% or less, 32 ohm load)
Digital output connector (COAXIAL): RCA pin jack
Supported signal formats: IEC 60958-3 standard for consumer use,
IEC 60958-4 for professional use
Output impedance: 75 ohm
Output level: 0.5 Vpp
Digital output connector (XLR): XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Supported signal formats: IEC 60958-3 standard for consumer use, IEC 60958-4 for professional use
Output impedance: 110 ohm
REMOTE connector: 2.5-mm TRS jack
RS-232C connector: D-sub 9-pin (female)
CONTROL I/O PARALLEL: D-sub 25-pin (female)
Frequency response: 20 Hz20 kHz ±0.5 dB (JEITA)
S/N ratio: 95 dB or more (JEITA)
Dynamic range: 95 dB or more (JEITA)
Distortion: 0.005% or less (JEITA)
Channel separation: 95 dB or more (1 kHz, JEITA)
Power supply: AC 100-240 V, 50-60 Hz
Power consumption: 12.5 W
Dimensions (W x H x D): 483 x 94 x 306 mm
Weight: 4.9 kg
Operating temperature range: 5 - 35 °C
Installation angle: 15° or less
