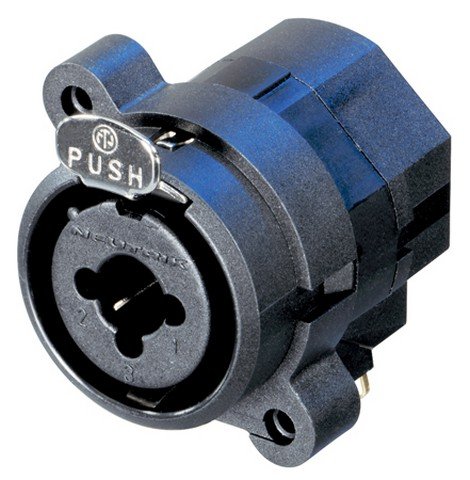

Neutrik COMBO chassis fatning hun
Neutrik COMBO chassis fatning hun
Neutrik COMBO chassis fatning hun

Neutrik COMBO chassis fatning hun

36,50 DKK (inkl. moms)
NCJ9FIS COMBO chassis fatning hun
Model/Varenr.: NE-NCJ9FIS
Leverandør varenr.: NCJ9FIS
Lagerstatus:På lager - kan sendes i dag
Favoritliste
Inkl. moms
                0
                                                                                                                                                                                                                                                                                                                                                                                                                        1
                                                                        2
                                                                        3
                                                                        4

Beskrivelse

NCJ9FIS COMBO chassis fatning hun

Contact resistance: Contact resistance: Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 7,5 A (XLR)
Rated current per contact: 7,5 A (Jack)
Rated voltage: Switching contacts: 3
Insertion force: ≤ 25 N
Withdrawal force: ≤ 25 N
Lifetime: > 1000 mating cycles
Panel thickness: max. 7 mm 0.27"
Mounting direction: Rear mounting
Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
Contacts: Bronze (CuSn6)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Steel Ck67
Temperature range: -30 °C to +80 °C

Specifikationer

Information

Type: 3 pol
Model: Chassis stik
Variant: Hun stik
