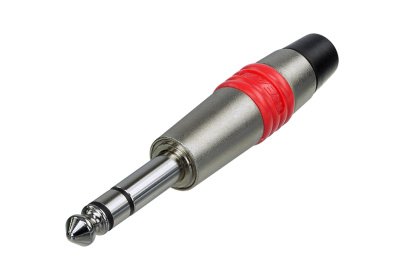

REAN Jackstik, metalhus, stereo, rød markering

NYS228C-2 Jackstik REAN, metalhus, stereo, rød markering

3 polet 1/4" stik, metalhus, rød markering.
0-Sort, 2-Rød, 4-Gul, 5-Grøn, 6-Blå

Dielectric strength: 0.5 kVdc
Insulation resistance: >= 1 GOhm
Contact resistance: depends on mating connector
Rated current: depends on mating connector
Cable O.D.: <= 6 mm
Lifetime: 1000 mating cycles
Wiresize: 24 AWG
Contact plating: 2 µm Ni
Contacts: Brass (CuZn39Pb3)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Insulation: Thermoplastic
Strain relief: Crimp type SnCe plated
Solderability: Complies with IEC 68-2-20
Temperature range: - 20 °C to +70 °C

Information

Type:	Stereo jack
Model:	Kabel stik
Variant:	Han stik
Farve:	Rød

Størrelse

Vægt:	0,02
