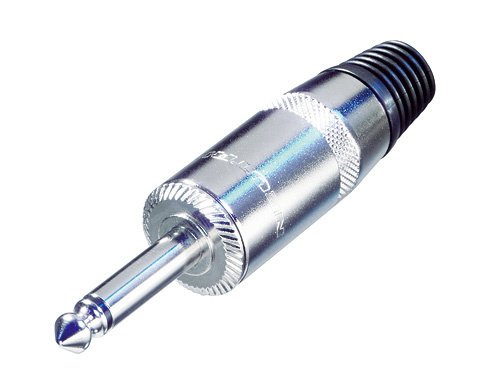

REAN Jackstik i metalhus, mono til 9mm kabel

NYS225L Jackstik REAN, metalhus, mono til 9mm kabel

2 polet 1/4" stik, metalhus til højttalerkabler, store kabler (9mm).

Dielectric strength: 0.5 kVdc
Insulation resistance: >= 1 GOhm
Contact resistance: depends on mating connector
Rated current: depends on mating connector
Cable O.D.: <= 9 mm
Lifetime: 1000 mating cycles
Wiresize: 12 AWG
Contact plating: 2 µm Ni
Contacts: Brass (CuZn39Pb3)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Strain relief: SnCe plated, crimp type
Bushing: PVC
Insulation: Thermoplastic
Solderability: Complies with IEC 68-2-20
Temperature range: -20 °C to +70 °C

Information

Type:	Mono jack
Model:	Kabel stik
Variant:	Han stik
Farve:	Blank - sølv

Størrelse

Vægt:	0,034
