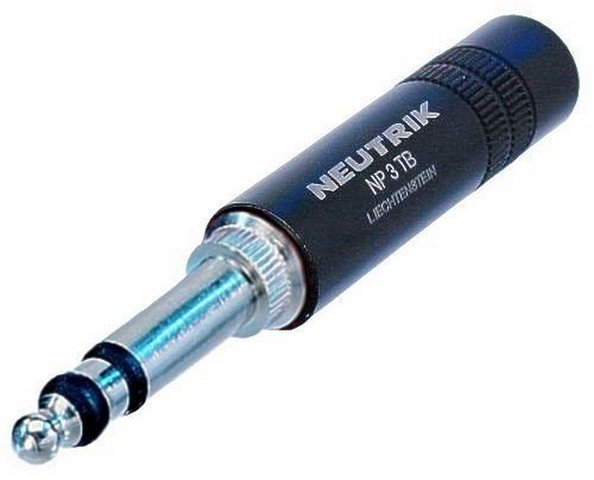

Neutrik Jackstik BPO, sort hus

NP3TB Jackstik BPO, sort hus

1/4" 'B-Gauge'-stik (BPO 316), sort metalhus, nikkelkontakter

Contact resistance: depends on mating connector mOhm
Dielectric strength: 1 kVdc
Insulation resistance: > 2 G Ohm (initial)
Rated current per contact: depends on mating connector A
Rated voltage: Cable O.D.: 4 - 7 mm
Lifetime: > 1000 mating cycles
Wiresize: 1 mm²
Wiresize: 18 AWG
Wiring: Solder contacts
Bushing: Polyacetal (POM) + PU
Contact plating: 2 µm Ni (Su)
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA 6.6 30 % GR)
Shell: Brass (CuZn39Pb3)
Shell plating: Black
Strain relief: Polyacetal (POM)
Standard compliance: B-Gauge BPO316
Solderability: Complies with IEC 68-2-20
Temperature range: -20 °C to +65 °C

Information

Type:	Stereo jack
Model:	Kabel stik
Variant:	Han stik
Farve:	Sort med sølv kontakter

Størrelse

Vægt:	0,024
