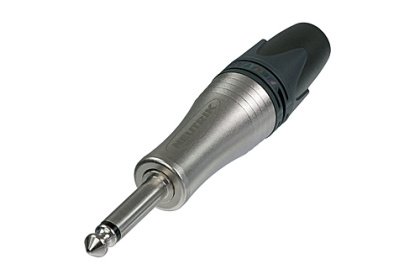

Neutrik Jackstik mono slim version til 10mm kabel

NP2XL Jackstik mono slim version til 10mm kabel

2 polet, 1/4" jack-stik, op til 10 mm kabel O.D.

Contact resistance: mOhm depends on mating connector
Dielectric strength: 1 kVdc
Insulation resistance: > 2 GOhm (initial), >= 1 GOhm (after damp heat test)
Rated current per contact: A depends on mating connector
Rated voltage: Cable O.D.: <= 10 mm
Lifetime: > 1000 mating cycles
Wiresize: 1 mm²
Wiresize: 18 AWG
Standard compliance: IEC 60603-11 / EIA RS-453
Temperature range: -20 °C to +65 °C

Information

Type:	Mono jack
Model:	Kabel stik
Variant:	Han stik
Farve:	Blank - sølv

Størrelse

Vægt:	0,038
