Neutrik Jackstik mono, vinkel m/timbre regulering specifikt til el-guitarer

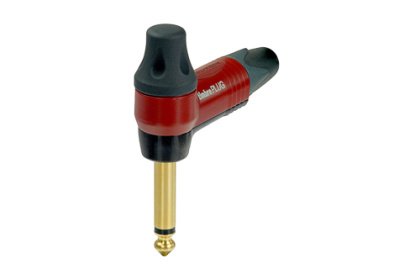

NP2RX-TIMBRE Jackstik mono, vinkel m/timbre regulering

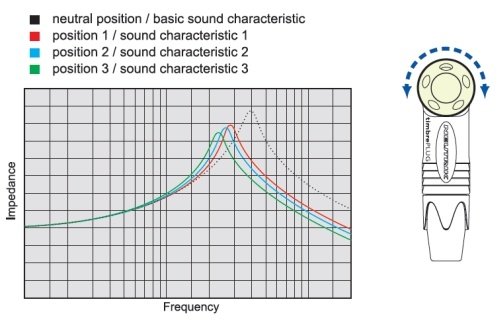

2 polet, vinklet jack-stik, timbre-regulering. Stikket kan ændre guitarkablers elektriske egenskaber og lydkarakteristik i 4 trin.

Contact resistance: - depends on mating connector
Dielectric strength: 100 kVdc
Insulation resistance: > 2 GOhm (initial), >= 1 GOhm (after damp heat test)
Rated current per contact: - A depends on mating connector
Cable O.D.: 4 - 7 mm
Lifetime: 1000 mating cycles
Wiresize: 1 mm²
Wiresize: 18 AWG
Insulation: Polyamide (PA 6.6 30% GR)
Temperature range: -20°C to +65 °C

Information

Type:	Mono jack
Model:	Kabel stik
Variant:	Han stik
Farve:	Rød

Størrelse

Vægt:	0,043
