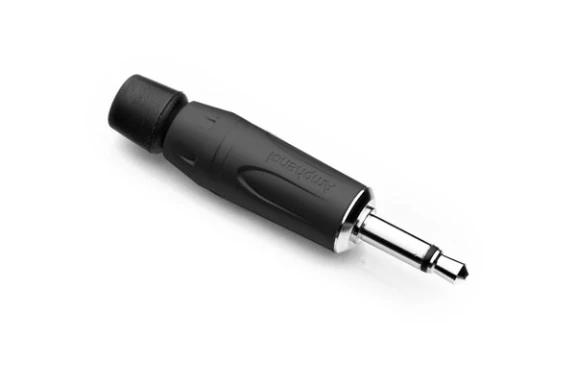

Ampenol 3.5mm minijack mono kabelstik, Sort

Ampenol 3,5 mini jack mono

Sort kabelstik 3,5 minijack mono, med guld kontakter

Positions: 2
Finish: Black
Contact Plating: Gold
IP Rating: IP40
Current Carrying Capacity: >0.5mA (Depends on Mating Connector and Cable)
Termination: Solder
Max Wire Gauge: 16AWG -1.5mm²
Flammability Rating: UL94V-0 or UL94-HB
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Typical Contact Resistance: < 20m (Depends on mating connector)
Insulation Resistance: >200M / >100M after Damp Heat Test
Operating Temperature: -20°C to +65°C (-4°F to 149°F)
Insertion and Withdrawal Force: < 20N/ > 30N (depends on mating connector)
Cable OD Range: 3mm to 5mm (0.118" to 0.196")
Mating Cycles: 1000
Housing Material: Diecast Zinc Alloy EZDA No.3
Application(s): Audio & Lighting

Amphenol er en af de førende producenter inden for produktion af stik til event og industri.
AV stik af høj kvalitet sikrer fremragende lydgengivelse og højhastighed af dataoverførsel, hvilket giver kunderne ubegrænset fleksibilitet.

Information

Farve:	Sort med guld

Størrelse

Vægt:	0,01
