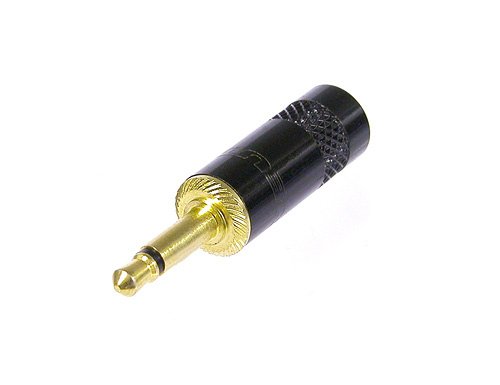

REAN Mini jackstik mono, guldkontakter

NYS226-BG Mini jackstik mono, guldkontakter

2 polet 3,5 mm mini jackstik, forgyldte kontakter, metalhus.

Dielectric strength: 0.5 kVdc
Insulation resistance: >= 1 GOhm
Rated current: depends on mated connector
Contact resistance: depends on mated connector
Cable O.D.: 4 mm
Insertion force: <= 20 N
Withdrawal force: >= 10 N
Lifetime: 1000 mating cycles
Contact plating: Au
Contacts: Brass (CuZn39Pb3)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Black
Strain relief: SnCe plated, crimp type
Insulation: Thermoplastic
Solderability: Complies with IEC 68-2-20
Temperature range: -25 °C to +70 °C

Information

Type:	2 pol
Model:	Kabel stik
Variant:	Han stik
