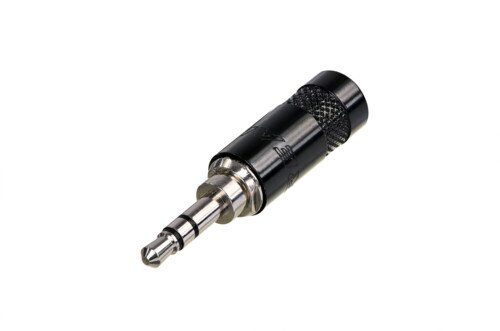

REAN Mini jackstik stereo til 4,5 mm kabel, Sort

NYS231L Mini jackstik Ningbo stereo

3 polet 3,5 mm jackstik, sort metalhus

Title NYS231
Connection Type Plug

Electrical
Contact Resistance <= 10 mOhm
Insulation Resistance >= 200 MOhm(Initial)
Dielectric Strength 0.5 KVdc 50HZ

Mechanical
Lifetime > 5,000 Mating Cycles
Insertion and Withdrawal Force 5 - 40 N
Cable O.D. max 4.5 mm for standard outlet

Material
Plug finger Brass
Sleeve Zinc
Retainer ring PA66+30%GF
Soldering Contact Phosphor Bronze
Cable Clamp Steel
Insulation PP

Housing Zinc
Plug finger plating Nickel
Sleeve plating Nickel
Soldering Contact plating Tin
Cable Clamp plating Tin
Housing plating Nickel

Information

Type:	3 pol
Model:	Kabel stik
Variant:	Han stik
Farve:	Sort med sølv kontak
