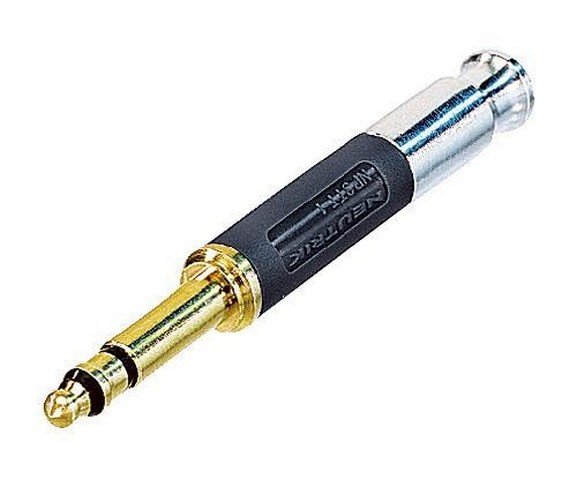

Neutrik Jackstik BANTAM, sort hus, guld kontakter

NP3TT-AU-B Jackstik BANTAM, sort hus, guld kontakter

4,4 mm jack-stik bantam-type, loodetermination til T + R, crimp-termination til S, crimp-kabelaflastning, sort plastikhus, forgyldte kontakter.

Contact resistance: depends on mating connector mOhm
Dielectric strength: 1 kVdc
Insulation resistance: > 2 GOhm (initial)
Rated current per contact: depends on mating connector A
Rated voltage: Cable O.D.: 4 - 4.8 mm
Crimp size: 5,41 Hex crimp (shield) acc. IEC 60803 (die designation D)
Lifetime: > 1000 mating cycles
Wiresize: 0,25 mm²
Wiresize: 24 AWG
Wiring: Solder contacts
Bushing: Polyacetal (POM) + PU
Contact plating: 0.2 µm Au TRIBOR®
Contacts: Bronze (CuSn6) (Tip)
Insert: Polyamide (PA 6.6 30 % GR)
Shell: Brass (CuZn39Pb3)
Shell plating: 2 µm Ni (Su) + PA 6 30% GR (black)
Standard compliance: MIL-P-642/13
Solderability: Complies with IEC 68-2-20
Temperature range: -20 °C to +65 °C

Information

Type:	Stereo jack
Model:	Kabel stik
Farve:	Sort med sølv

Størrelse

Vægt:	0,008
