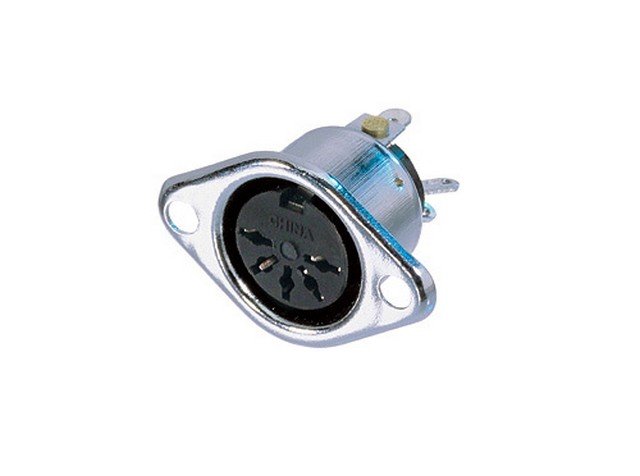

REAN DIN chassis fatning, 5 polet, 180 grader

NYS325 DIN chassis fatning, 5 polet, 180 grader

5 polet DIN chassis fatning, forsølvede kontakter.

Dielectric strength: 0.5 kVdc
Insulation resistance: >= 1 GOhm
Rated current: depends on mated connector
Contact resistance: depends on mated connector
Cable O.D.: 5 mm
Lifetime: > 1000 mating cycles
Contact plating: Ag plated
Contacts: Brass (CuZn39Pb3) , Ni
Shell: Steel
Shell plating: Nickel plated
Solderability: Complies with IEC 68-2-20
Temperature range: -25 °C to +70 °C

Størrelse

Vægt:	0,006
