RJ45 CAT6 etherCON han kabelstik

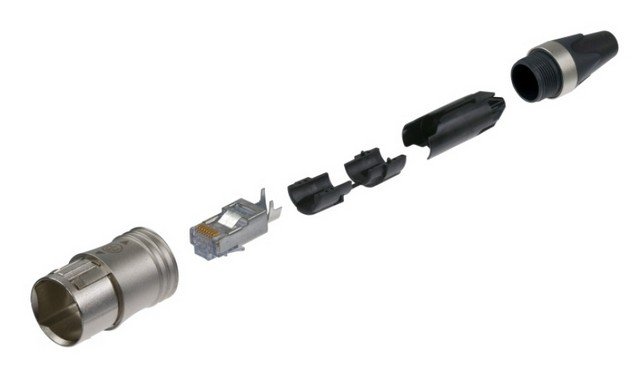

NE8MC-6-MO RJ45 CAT6 etherCON han kabelstik

Kan KUN bruges med NE8FDY-C6* CAT6-fatninger. Er ikke kompatibel med CAT5 og CAT6A chassis-stik.

Cable O.D.: 5.5 - 6.5 mm
Insertion force: <= 40 N
Withdrawal force: <= 20 N
Lifetime: > 1000 mating cycles
Wiresize: 28 - 22 AWG
Locking device: Push-Pull
Boot: Polyurethan
Bushing: Polyamide (PA 6 15 % GR)
Contact plating: 0.7 µm Au over 1.2 µm Ni plating
Contacts: Bronze (CuSn8)
Insert: Polyamdie (PA 6.6 30 % GR)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Strain relief: Polyacetal (POM)
CAT6 Plug: Molex Part Nr. 44915-0021
Flammability: UL 94 HB
Standard compliance: CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN 50173
Protection class: IP 65
Temperature range: -10 °C bis +60 °C

Information

Model:	Kabel stik
Variant:	Cat 6

Størrelse

Vægt:	0,037
