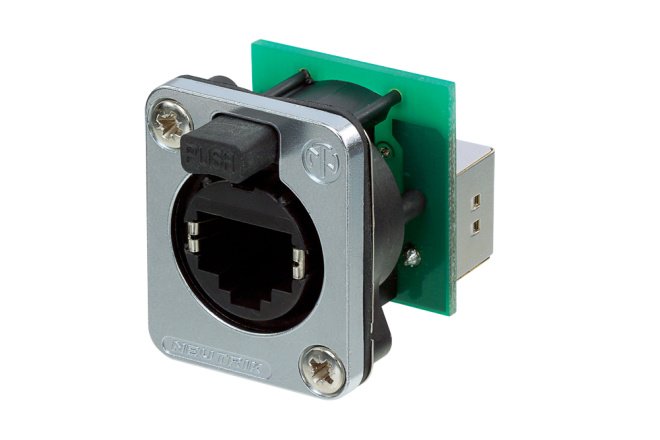

RJ45 etherCON hun chassis (gennemføring) m/sealing kit

NE8FDP-SE RJ45 etherCON hun chassis (gennemføring) m/sealing kit

Kan ikke bruges med CAT6 kabelstik NE8MC6-MO og NKE6S*-kabler.

Contact resistance: Dielectric strength: 1 kVdc
Frequency range: 1 - 100 MHz
Insulation resistance: > 0.5 GOhm
Rated current per contact: 1.5 A
Rated voltage: Transmission performance: CAT 5e
Insertion force: <= 20 N
Withdrawal force: <= 20 N
Lifetime: 1000 mating cycles
Panel thickness: 2 mm - 4 mm , 0.08" - 0.16"
Wiring: Feedthrough
Locking device: Latch lock
Chassis shape: D
Contact plating: 0.2 µm Au over Ni plating
Contacts: Bronze (CuSn8)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Chromium
Flammability: UL 94 V-0
Standard compliance: TIA/EIA 586B, IEC11801
Temperature range: -30 °C to +80 °C

Information

Model:	Chassis stik
Variant:	Cat 5

Størrelse

Vægt:	0,024
